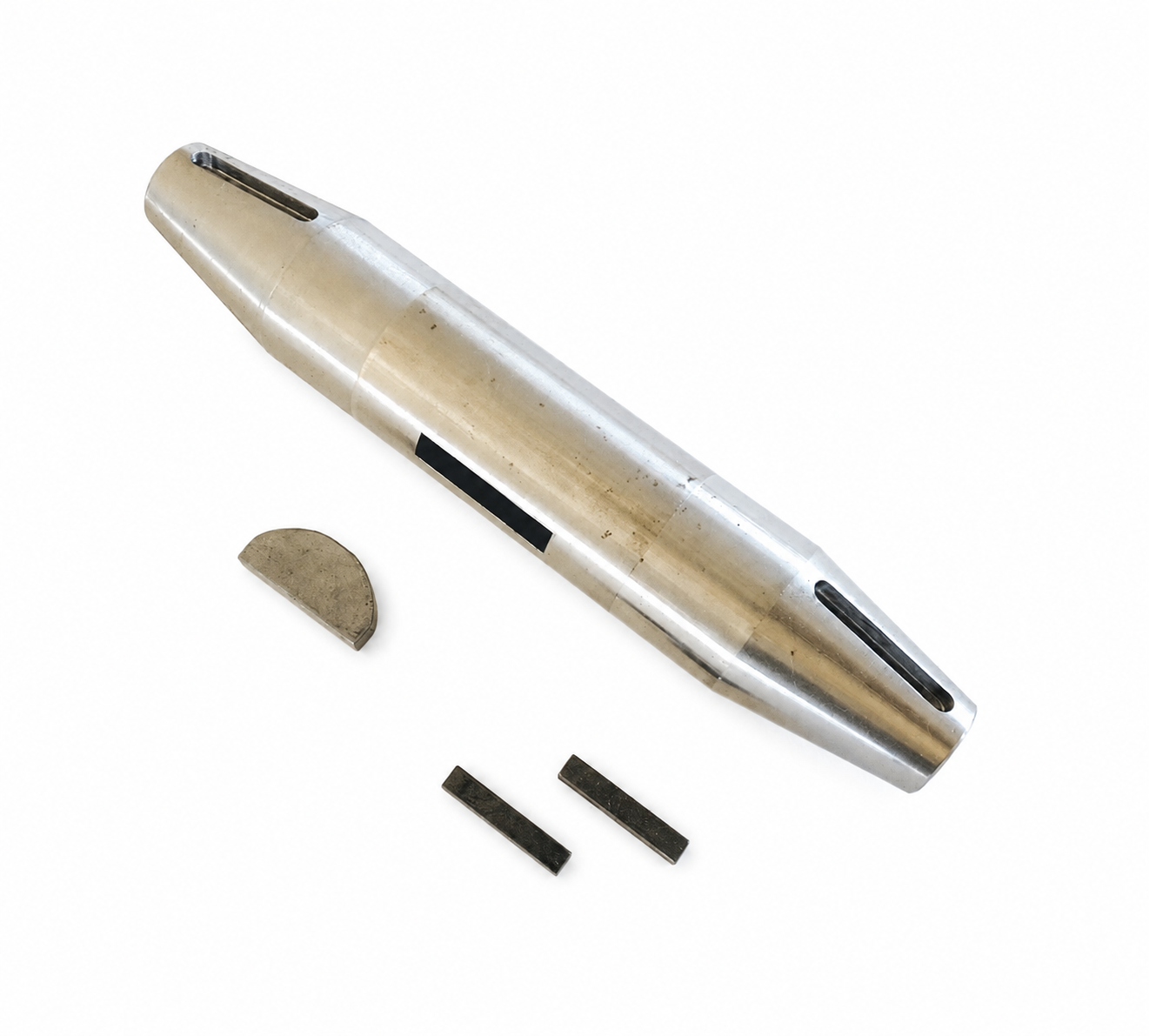

Troy-Bilt/MTD Tiller Tine Shaft GW-1026A W/ Center Key GW-1104 & 2 End Keys 9301 (1026A-WK)

Troy-Bilt Tiller Tine Shaft With Keys – 1 Center and 2 End Keys

• Part numbers:
  • Tine Shaft:
    • 1026A
    • 1026
    • GW-1026A
    • GWT2A-17
  • 1 Woodruff key for the center of the tine shaft:
    • GW-1104
    • 1104
  • 2 Square keys for the ends of the tine shaft:
    • GW-9301099
    • 9301
    • GW-206
    • GW-9301
    • GW-B70795
• Specification:
  • 1.25 inch OD shaft
  • Tapers down to 0.735 inch OD on both ends
  • 7.00 inch overall length
  • 1/2 - 20 female threads on each end
