LB White Direct Spark Ignition Control Kit 57242

LB White Direct Spark Ignition Control Kit 57242

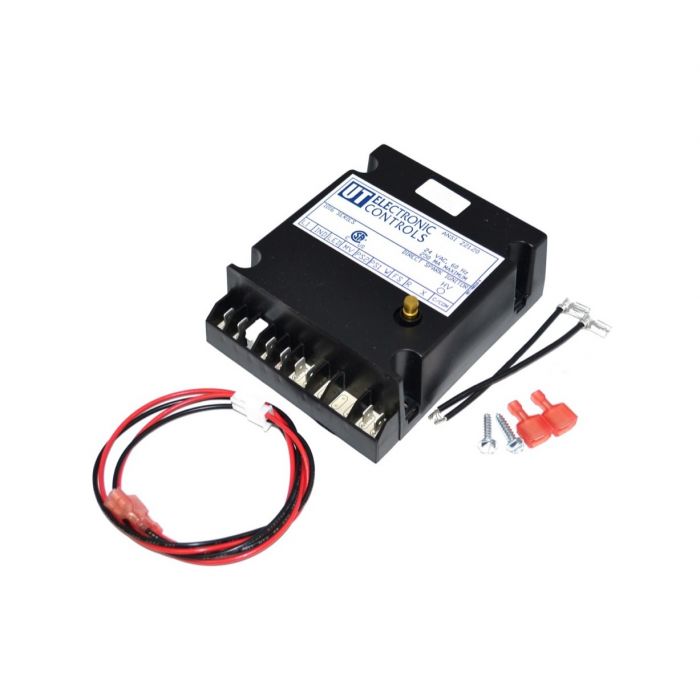

The LB White Direct Spark Ignition Control Kit 572427 is a diagnostic board designed for use with LB White propane and natural gas heaters only. The DSI will send an electrical signal to the small LED light that will then flash a specific number of times to signal what might be wrong with the heater. There is a base stud located on top of the board to attach the ignition lead.

The direct spark ignition kit replaces the RAM-3MC2-01 board, part number 08810 and is compatible with the following models: CP100A,
CP100B(SP), CP155A, CP155B(SP), CP380A, CP380B(SP), CP400T (Diagnostic Model), CS080C, CS080D, CS080E, CS170D, CS170E,
CT080A, CT080B, CT170A, CT170B, TS080C, TS080D, TS080E, TS170C, TS170D, TS350, CP155BSN, CS080C (Natural Gas), CS080D
(Natural Gas), CS080E (Natural Gas).

NOTE: L.B. White parts can be used on multiple heater models and model years. Always reference your owner's manual to make sure you
order the correct part for your heater.

This Kit Contains:
(1) 22301 board
(1) wiring harness
(2) wire connectors
(2) caps
(2) screws
Instructions

Additional Product Information:
Replaces the RAM-3MC2-01 board (part 08810)
Diagnostic board
For use in LB White propane/natural gas heaters ONLY
24V/60Hz
