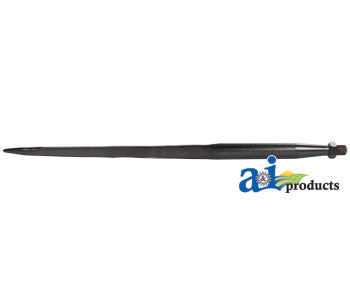

3600 Pound Capacity Bale Point, Heavy Duty; 1 3/4" X 49" with Nut (BP13449-HD)

3600 Pound Capacity Bale Point, Heavy Duty; 1 3/4" X 49" with Nut (BP13449-HD)

Crossed From:
295229 TSC Canada

Specifications:
New heavy duty bale point. Bale point has a 3,600 lb. load capacity. Bale point torqued to 456-500 ft. lbs. Bale point is 49" long with 1.750" diameter and 30 mm nut.
For 1 3/4" Bale Points
Dimension A (1) 1.750" Dia.
Dimension B (2) 49" Long
Dimension C (3) 30MM Nut
Dimension D (4) Load Capacity: 3600 lbs. on 41.5" (1054.1 mm) Load Center
Dimension E (5) Tightning Torque For Nut: 465 - 500 Ft. Lbs.
Dimension F (6) Uses Sleeve BPS134
Dimension G (7) Replacement Nut BPN3002 Available

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
