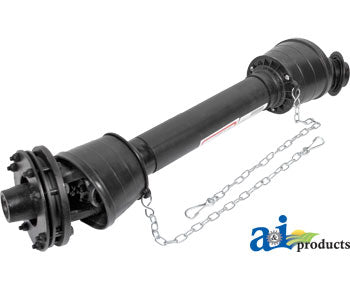

6" Friction Clutch Driveline Kin Kutter 147122 (CS42016)

6" Friction Clutch Driveline Kin Kutter 147122 (CS42016)

Replaces:
A-147122 King Kutter

Specifications:
Rotary tiller driveline with friction disc clutch. Driveline rated as a category 3 (35 hp), 100 series. Driveline C-to-C length: 20" (510 mm), Max C-to-C length: 29.375" (746 mm), Total collapsed length: 29.37" (746 mm). Tractor end: 1-3/8" 6 spline, Implement end: 1-3/8" 6 spline 6" 2 disc clutch. Fits King Kutter Rotary Tillers.
It may be necessary to cut this driveline to length. Verify the length by ensuring that sufficient overlap of the drive tubes exists in all working positions without the possibility of bottoming out.
Genuine alternative to original part.
C to C Max 750 mm/ 29.375"
C to C Min 510 mm/ 20"
Category 3 (35HP)
Clutch Diameter 6"
Implement 1 3/8" - 6 spl. 2 disc clutch
Series 100
Size 4
Total Collapsed Length 746 mm/ 29.37"
Tractor 1 3/8" -6

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
