Din Light 24 degree Seat 90 degree Female Swivel O-Ring (F-DL9008-15-22-W)

Din Light 24 degree Seat 90 degree Female Swivel O-Ring (F-DL9008-15-22-W)

Crossed From:
SW14649 A&I

Specifications:

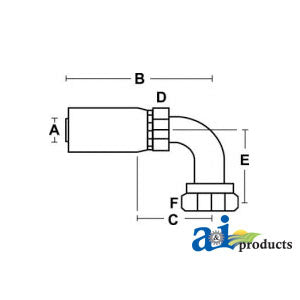

Dimension A (1) 1/2
Dimension B (2) 3.49
Dimension C (3) 2.15
Dimension D (4) 7/8
Dimension E (5) 2.26
Dimension F (6) 1-1/16
Thread M22 X 1.5

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
