(HC-FFX45) Female Seal Lok - Swivel - 45° Elbow (FFX45-12-10)

(HC-FFX45) Female Seal Lok - Swivel - 45° Elbow (FFX45-12-10)

Replaces:
HY12-100F45T Dayco
1J7HY-10-12 Miscellaneous
12U-L70 Weatherhead
Crossed From:
SW08518 A&I

Specifications:

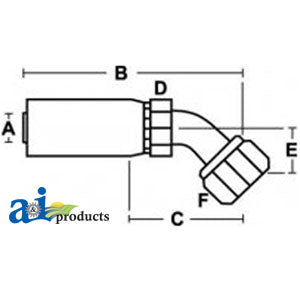

Dimension A (1) 0.750"
Dimension B (2) 3.950"
Dimension C (3) 2.360"
Dimension D (4) 1-1/8"
Dimension E (5) 0.630"
Dimension F (6) 1-1/8"
Hose Inside Diameter 3/4"
Replaces Dayco # HY12-100F45T - Weatherhead # 12U-L70
Thread Size 1 x 14

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
