(HC-FFX45) Female Seal Lok - Swivel - 45° Elbow (FFX45-12-16)

(HC-FFX45) Female Seal Lok - Swivel - 45° Elbow (FFX45-12-16)

Replaces:
HY12-160F45T Dayco
1J7HY-16-12 Miscellaneous
12U-L76 Weatherhead
Crossed From:
SW08215 A&I

Specifications:

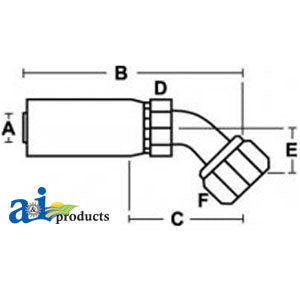

Dimension A (1) 0.750"
Dimension B (2) 4.540"
Dimension C (3) 2.950"
Dimension D (4) 1-1/8"
Dimension E (5) 0.970"
Dimension F (6) 1-5/8"
Hose Inside Diameter 3/4"
Replaces Dayco # HY12-160F45T - Weatherhead # 12U-L76
Thread Size 1-7/16 x 12

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
