(HC-FJX45) Female JIC 37° - Swivel - 45° Elbow (FJX45-12-16)

(HC-FJX45) Female JIC 37° - Swivel - 45° Elbow (FJX45-12-16)

Replaces:
HY12-16FJ45T Dayco
137HY-16-12 Miscellaneous
Crossed From:
SW08235 A&I
41-0487 Farm Oyl

Specifications:

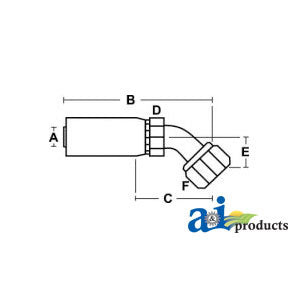

Dimension A (1) 0.750"
Dimension B (2) 4.461"
Dimension C (3) 2.691"
Dimension D (4) 1-3/8"
Dimension E (5) 1.146"
Dimension F (6) 1-1/2"
Hose Inside Diameter 3/4"
Replaces Dayco # HY12-16FJ45T
Thread Size 1-5/16 x 12


This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
