(HC-FJX90) Female JIC 37° - Swivel - 90° Elbow (FJX90-16-16)

(HC-FJX90) Female JIC 37° - Swivel - 90° Elbow (FJX90-16-16)

Replaces:
HY16-16FJ90T Dayco
139HY-16-16 Miscellaneous
16U-676 Weatherhead
Crossed From:
FJ9132-1616S AEROQUIP
SW08247 A&I
ZJM399 Case/ International Harvester
16U-672 Weatherhead
41-0518 Farm Oyl

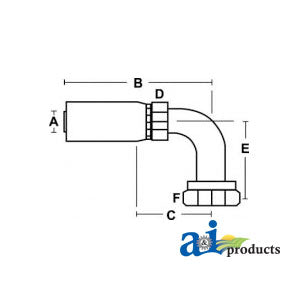

Specifications:
Dimension A (1) 1.000"
Dimension B (2) 4.424"
Dimension C (3) 2.129"
Dimension D (4) 1-3/8"
Dimension E (5) 2.210"
Dimension F (6) 1-1/2"
Hose Inside Diameter 1"
Replaces Dayco # HY16-16FJ90T - Weatherhead # 16U-676
Thread Size 1-5/16 x 12


This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
