4 Bolt Hub and SPindle Assembly 5304-35904 (HS125045)

4 Bolt Hub and SPindle Assembly 5304-35904 (HS125045)

Crossed From:
104064 Miscellaneous
5304-35904 John Day

Specifications:

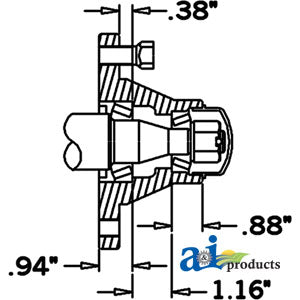

4 Bolt On 5.00" Circle - (3.625" Hub Pilot) Rated at 1250 lbs capacity @ 20 mph.
Dimension A (1) Inner Cup: LM67010
Dimension B (2) Inner Cone: LM67048
Dimension C (3) Outer Cup: LM11910
Dimension D (4) Outer Cone: LM11949
Dimension E (5) Hub Cap: HC101
Bolt WB12 (4)
Includes Hub with Cups, Cones, Seal, Lug Bolts, SPindle, Hdwe, Dust Cap.
Replaces French & Hecht - 104064
Seal CR16069
