6 Bolt Hub and SPindle Assembly Q709 (HS276066)

6 Bolt Hub and SPindle Assembly Q709 (HS276066)

Crossed From:
Hub6200 A&I
Q709 Miscellaneous
5304-37904 John Day

Specifications:

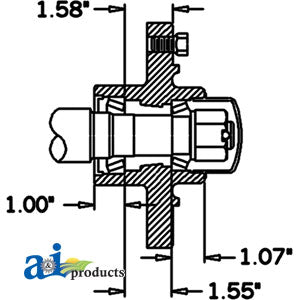

6 Bolt On 6.00" Circle - (4.625" Hub Pilot) Rated at 2760 lb capacity @ 20 mph.
Dimension A (1) Inner Cup: LM48510
Dimension B (2) Inner Cone: LM48548
Dimension C (3) Outer Cup: LM67010
Dimension D (4) Outer Cone: LM67048
Dimension E (5) Hub Cap: HC102
Bolt WB12 (6)
Includes Hub with Cups, Cones, Seal, Lug Bolts, SPindle, Hdwe, Dust Cap.
Replaces Electric Wheel - Q709
Seal CR15190
