6 Bolt Hub and Spindle Assembly Q888 (HS356066)

6 Bolt Hub and Spindle Assembly Q888 (HS356066)

Crossed From:
HUB6600L A&I
Q888 Miscellaneous

Specifications:
6 Bolt On 6.00" Circle - (4.625" Hub Pilot) Rated at 3560 lbs capacity @ 20 mph.

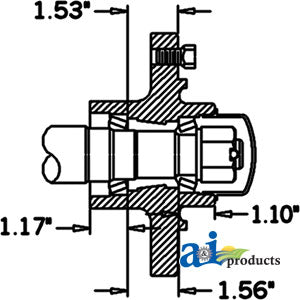

Dimension A (1) Inner Cup: JL69310
Dimension B (2) Inner Cone: JL69349
Dimension C (3) Outer Cup: LM67010
Dimension D (4) Outer Cone: LM67048
Dimension E (5) Hub Cap: HC102
Bolt WB12 (6)
Includes Hub with Cups, Cones, Seal, Lug Bolts, Spindle, Hardware, Dust Cap.
Replaces Electric Wheel - Q888
Seal CR16289
