(HC-MBX90) Male O-Ring Boss - Swivel - 90° Elbow (MBX90-12-12)

(HC-MBX90) Male O-Ring Boss - Swivel - 90° Elbow (MBX90-12-12)

Replaces:
HY12-12RC90 Dayco
10LHY-12-12 Miscellaneous
12U-R72 Weatherhead
Crossed From:
B91109 Case/ International Harvester
SW08531 A&I
41-0460 Farm Oyl

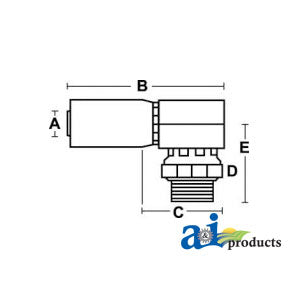

Specifications:
Dimension A (1) 0.750"
Dimension B (2) 3.630"
Dimension C (3) 1.000"
Dimension D (4) 1-1/8"
Dimension E (5) 2.360"
Hose Inside Diameter 3/4"
Replaces Dayco # HY12-12RC90 - Weatherhead # 12U-R72
Thread Size 1-1/16 x 12

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
