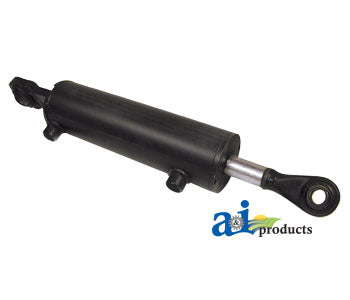

Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) (TLH003)

Hydraulic Top Link Cylinder (Cat I Rod/Cat II Base) (3" Bore) (TLH003)

Replaces:
TLH03 Miscellaneous
Crossed From:
HTL3101 A&I
13-544 Miscellaneous

Specifications:
All ports .563"-18 ORB with two adapters .563" -18 ORBM X .250" NPTM 90? swivel.
Barrel Length 12.438"
Base End Ball Inside Dia 1"
Base End Ball Width 1.750"
Base To Ball Center Lngth 3.500"
Compressed Length 20"
PSI 1450.377
Replaces Gannon 13-544
Rod End Ball Inside Diame .750"
Rod End Ball Width 1.750"
Rope Diameter 1.100"
Stroke 8"
Working Pressure 1450 lbs

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
