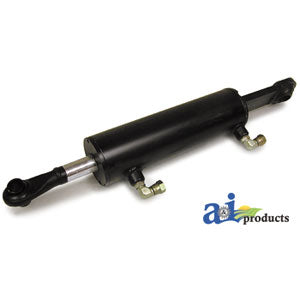

Hydraulic Top Link Cylinder (Cat II) (3" Bore) (TLH005)

Hydraulic Top Link Cylinder (Cat II) (3" Bore) (TLH005)

Replaces:
TLH05 Miscellaneous
Crossed From:
HTL3103 A&I
13-827 Miscellaneous

Specifications:
All ports .563"-18 orb with two adapters .563"-18 ORBM X .250 NPTM 90? swivel.
Barrel Length 12.438"
Base To Ball Center Lngth 5.500"
Compressed Length 26"
PSI 1450.377
Replaces Gannon 13-827
Rod End Ball Inside Diame 1"
Rod End Ball Width 1.750"
Stroke 8"
Working Pressure 1450 lbs.

This is a special order item. Special order items can take up to 3 to 5 additional days to arrive. If you have any questions regarding availability or processing time, please email us at chalmersind.questions@gmail.com.
