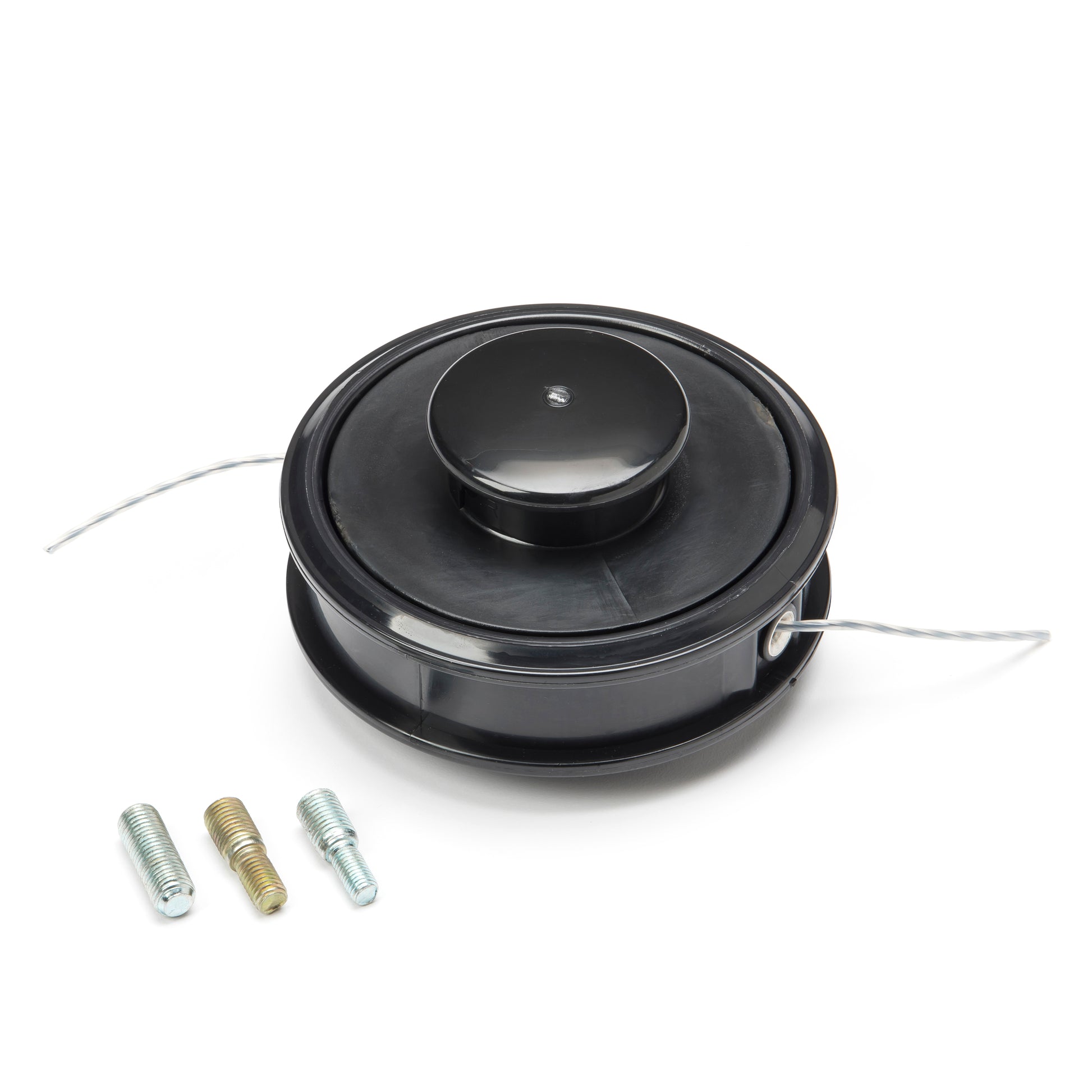

2 Line Bump-Feed Trimmer Head Semi-Automatic

2 Line Bump-Feed Trimmer Head Semi-Automatic / 55-284

Part Numbers:
Rotary 10231
Rotary 11988
Rotary 12384
Stens 385-430
Bolts Included:
7 mm x 1.0 LHM
8 mm x 1.25 LHM
10 mm x 125 LHF
Replacement Parts:
1. Housing
2. Washer (OBS)
3. 55-302-1 Spring
4. 55-304-1 Outer Driver
5. 55-305-1 Inner Cam LH
6. 55-286 Spool (4 slots LH)
7. 55-328 Spool (4 slots RH)

Fits Models:
Husqvarna 24R(up to ser 603702)
(Up to 86)16R, 22R, 24R, 25RL
Maruyama BC220DL, BC221DL
BC184, BC184C, BC200, BC201,
BC230, BC241, BC260, BC260H,
BC310, BC320, BC320H, BC326,
BC340DL, BC402, BC420H, BC500,
BC500H, BC2300, BC2321, BC2600,
BC3021, BC3200, BC4200H, BCL2550,
BCG x 22, BCG x 31, BCL2250,
Red Max BC220DL, BC221DL, BC300DL,
BC2300DL, BK235FL, BK345FL,
BK435FL, BK530DL, BC17, BC23, BC32,
BC240DL BC430DWM, BC440DWM, 32, 35, BC500
BC260DL, BC261DL, BC262DL,
BC340DL, BC341DL, BC342DL,
BC2600DL, BC430DWM,
BC440DWM, BK346FL, BK245FLK,
BK436FL, BC245A, BC260DM/
DMU, BC340DWM/FW, BC431DWM,
BCD20, BCF01, BC2601S, BC3400DW,
BC4400DW, BC x 2600DS, BCZ2500S/
SU/SW
BC430DWM, BC440DWM,
BC441DWM, BC442DWM, BC531DWM,
BC532DWM, FBC22, FBC26
Homelite HK-24 (to 1/V86), HK30(after 1/1/86), HK33 (to 1/1/86)
FK514, NBA524, PMB522,
S x 040, S x D40, T x D508
Jonsered BP40, BP40COMBI, BP2040, BR400,
BR420, BR450, BR460, BR480, BR500,
Tiger 40, GT21L, GT22L, GT24L,
GR26COMBI, GR26D, GR26L, GR32L,
GR2026CL, GR2026D, LR200, LR220,
LR260, LR320, LR400, LR420, LR450, LR460
McCulloch MAC 22/23/30A, SUPERMAC 30AV,
MS33, DELTA, 38AV, MS40, BP30AV,
TD2400/3300/4000
MAC 57, MAC 90, MAC 95,
MAC 100A, MAC 32, MAC 37
Shindaiwa BP35, T350, B45, B450
T195, T220, T222, T230, T230s, T242,
T242 x , T2510, T2510 x
T260, T261, T261 B/ x R/ x B, T272,
T272 x , T282, T282 x , T300, T3410,
T3410 x Stihl FS50, FS51, FS55, FS60, FS61, FS65,
FS80, FS83, FS85, FS86, FS90, FS91, FS96
A favorite among many major OEM's, this trimmer head
features single or dual line inde x ing with equal line e x tension
Recommended for trimmers under 28cc.

Part Number: 55-284
