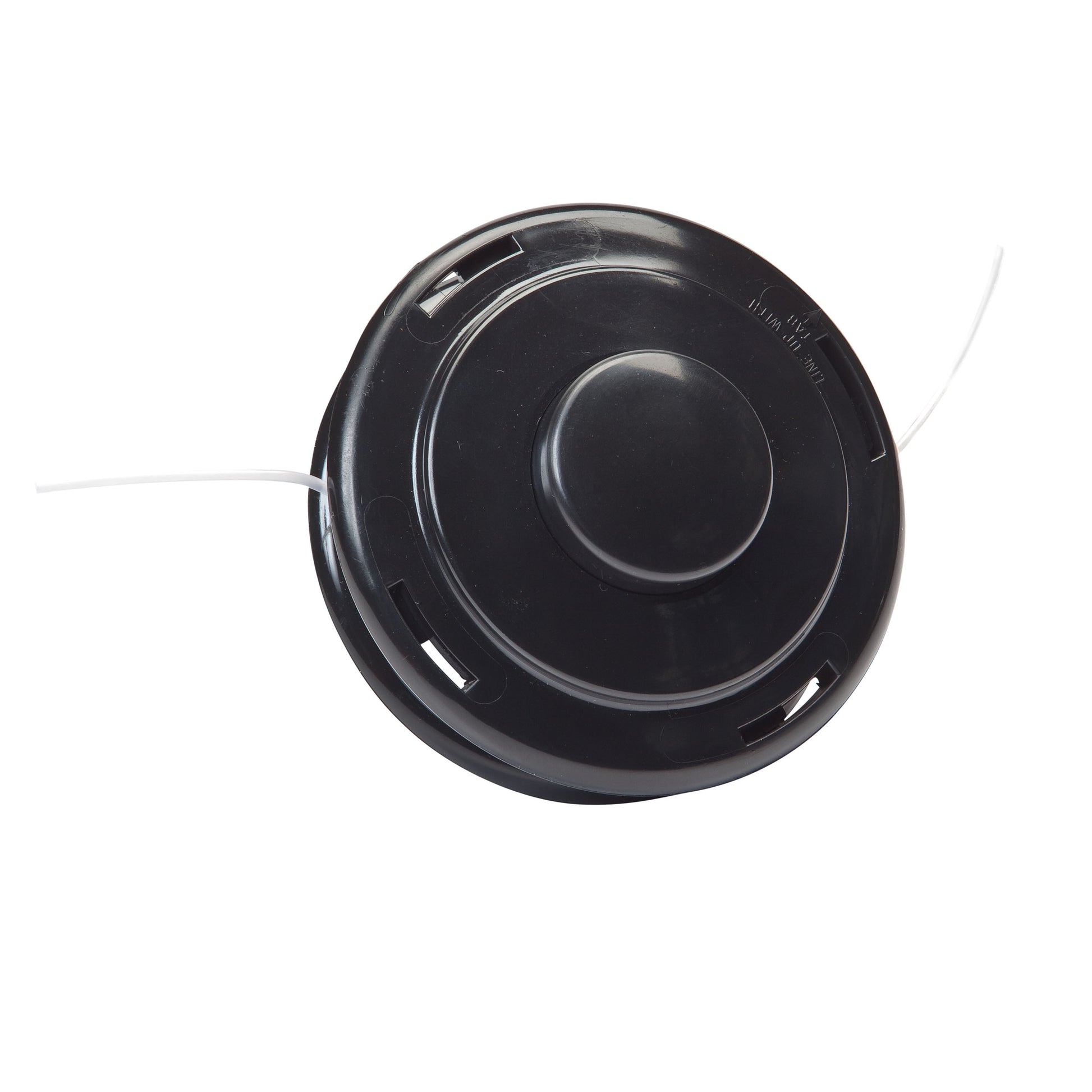

Heavy Duty Trimmer Head Pro Bump & Feed

Heavy Duty Trimmer Head Pro Bump and Feed / 55-983

Part Numbers:
Rotary 6694
Adapter included:
7 mm x 1.00 LHM
8 mm x 1.25 LHM
10 mm x 1.25 LHF
Replacement Parts:
1. Housing
2. Eyelet
3. Nut
4. 55-545 Spring
5. 55-549 Spool
6. 5-550 Button
7. 5-551 Cover

Fits Models:
Echo SRM SERIES: 140, 200, 202, 210, 220,
230, 250, 251, 260, 261, 265, 280, 300,
302, 303, 311, 330, 340, 343, 350, 400,
402, 500, 501, 1500, 1501, 2010, 2090,
2100, 2110, 2200, 2201, 2300, 2301,
2400, 2410, 2450, 2500, 2501, 2502,
2510, 2530, 2601, 3000, 3001, 3010,
3100, 3110, 3400, 3410, 3500, 3550,
3800, 4600
Husqvarna 24R(up to ser 603702)
(Up to 86)16R, 22R, 24R, 25RL
122L, 125L, 225L, 225LD, 225R, 225RD,
225RJ, 227LD, 232L, 232R, 322L, 322R,
324LX, 325LX/RX, 326LS/LX, 335LS
Homelite HK-24 (to 1/V86),
HK30(after 1/1/86), HK33 (to 1/1/86)
HBC40, PBC3800, PBC4000,
PMB52, HBC48
Jonsered BP40, BP40COMBI, BP2040, BR400,
BR420, BR450, BR460, BR480, BR500,
Tiger 40, GT21L, GT22L, GT24L,
GR26COMBI, GR26D, GR26L, GR32L,
GR2026CL, GR2026D, LR200, LR220,
LR260, LR320, LR400, LR420, LR450, LR460
RS44, GR44, GR41, J40D,
KQ20/30 (EURO)
Maruyama BC220DL, BC221DL, BC184, BC184C,
BC200, BC201, BC230, BC241,
BC260, BC260H, BC310, BC320,
BC320H, BC326, BC340DL, BC402,
BC420H, BC500, BC500H, BC2300,
BC2321, BC2600, BC3021, BC3200,
BC4200H, BCL2550, BCGX22, BCGX31, BCL2250,
BC184C, BC200C, BC260C
McCulloch MAC 22/23/30A, SUPERMAC 30AV,
MS33, DELTA, 38AV, MS40, BP30AV,
TD2400/3300/4000
PROMAC SERIES: III, IIISUP, IVSUP
PROSCAPER; SERIES: 28S, 32H,
32HDS, III IV, V, IS, II, IIHD, SEBIC,
SUPMAC100A; PS1, PS2, PS3, PS4,
PS5, SEBIV; EB SERIES: III, IVSL, 3, 4,
3SX, 32BCS, 35L, 280, 282, 285BCS,
297BCS, 325BC, 327BC, 2815, 2816
2817, 2818,
Red Max BC220DL, BC221DL, BC300DL,
BC2300DL, BK235FL, BK345FL,
BK435FL, BK530DL, BC17, BC23, BC32,
BC240DL, BC260DL, BC261DL, BC262DL,
BC340DL, BC341DL, BC342DL,
BC2600DL, BC430DWM,
BC440DWM, BK346FL, BK245FLK,
BK436FL, BC245A, BC260DM/DMU,
BC340DWM/FW, BC431DWM,
BCD20, BCF01, BC2601S, BC3400DW,
BC4400DW, BCX2600DS, BCZ2500S/SU/SW
Shindaiwa T195, T220, T222, T230, T230s,
T242, T242X, T2510, T2510X
T260, T261, T261 B/XR/XB, T272,
T272X, T282, T282X, T300,
T3410, T3410X
Stihl FS50, FS51, FS55, FS60, FS61, FS65,
FS80, FS83, FS85, FS86, FS90, FS91, FS96

Fits most straight-shaft trimmers.Works for single or dual
line indexing. Large capacity will hold up to 40 feet of 0.095 line

Part Number: 55-983
