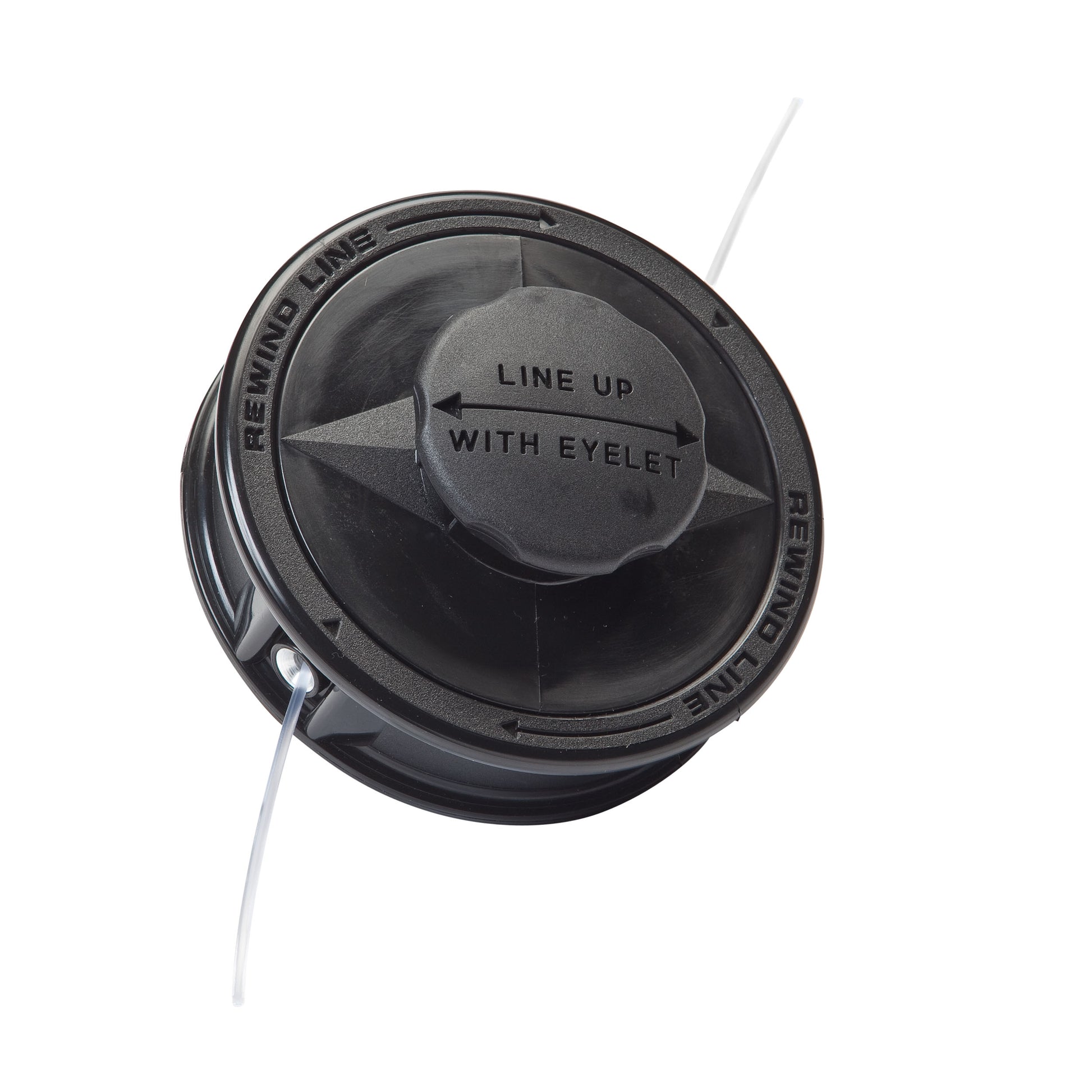

Trimmer Head Bump & Feed Semi-Automatic

Trimmer Head Bump and Feed Semi-Automatic / 55-984

Part Numbers:
Stens 385-427
Adapter included:
7 mm x 1.00 LHM
8 mm x1.25 LHM
10 mm x1.25 LHF
10 mm x 1.25 LHFCB
10 mm x 1.00 LHFCB
Replacement parts:
1. Housing
2. Eyelet
3. 55-553 Spring
4. 55-555 Spool
5.Cam Assembly
6. Nut

Fits Models:
Echo SRM SERIES: 140, 200, 202, 210, 220,
230, 250, 251, 260, 261, 265, 280, 300,
302, 303, 311, 330, 340, 343, 350, 400,
402, 500, 501, 1500, 1501, 2010, 2090,
2100, 2110, 2200, 2201, 2300, 2301,
2400, 2410, 2450, 2500, 2501, 2502,
2510, 2530, 2601, 3000, 3001, 3010,
3100, 3110, 3400, 3410, 3500, 3550,
3800, 4600
Husqvarna 24R(up to ser 603702)
(Up to 86)16R, 22R, 24R, 25RL
122L, 125L, 225L, 225LD, 225R, 225RD,
225RJ, 227LD, 232L, 232R, 322L, 322R,
324LX, 325LX/RX, 326LS/LX, 335LS
Homelite HK-24 (to 1/V86),
HK30(after 1/1/86), HK33 (to 1/1/86)
HBC40, PBC3800, PBC4000,
PMB52, HBC48
Jonsered BP40, BP40COMBI, BP2040, BR400,
BR420, BR450, BR460, BR480, BR500,
Tiger 40, GT21L, GT22L, GT24L,
GR26COMBI, GR26D, GR26L, GR32L,
GR2026CL, GR2026D, LR200, LR220,
LR260, LR320, LR400, LR420, LR450, LR460
RS44, GR44, GR41, J40D,
KQ20/30 (EURO)
Maruyama BC220DL, BC221DL, BC184, BC184C,
BC200, BC201, BC230, BC241,
BC260, BC260H, BC310, BC320,
BC320H, BC326, BC340DL, BC402,
BC420H, BC500, BC500H, BC2300,
BC2321, BC2600, BC3021, BC3200,
BC4200H, BCL2550, BCGX22, BCGX31, BCL2250,
BC184C, BC200C, BC260C
McCulloch MAC 22/23/30A, SUPERMAC 30AV,
MS33, DELTA, 38AV, MS40, BP30AV,
TD2400/3300/4000
PROMAC SERIES: III, IIISUP, IVSUP
PROSCAPER; SERIES: 28S, 32H,
32HDS, III IV, V, IS, II, IIHD, SEBIC,
SUPMAC100A; PS1, PS2, PS3, PS4,
PS5, SEBIV; EB SERIES: III, IVSL, 3, 4,
3SX, 32BCS, 35L, 280, 282, 285BCS,
297BCS, 325BC, 327BC, 2815, 2816
2817, 2818,
Red Max BC220DL, BC221DL, BC300DL,
BC2300DL, BK235FL, BK345FL,
BK435FL, BK530DL, BC17, BC23, BC32,
BC240DL, BC260DL, BC261DL, BC262DL,
BC340DL, BC341DL, BC342DL,
BC2600DL, BC430DWM,
BC440DWM, BK346FL, BK245FLK,
BK436FL, BC245A, BC260DM/DMU,
BC340DWM/FW, BC431DWM,
BCD20, BCF01, BC2601S, BC3400DW,
BC4400DW, BCX2600DS, BCZ2500S/SU/SW
Shindaiwa T195, T220, T222, T230, T230s,
T242, T242X, T2510, T2510X
T260, T261, T261 B/XR/XB, T272,
T272X, T282, T282X, T300,
T3410, T3410X
Stihl FS50, FS51, FS55, FS60, FS61, FS65,
FS80, FS83, FS85, FS86, FS90, FS91, FS96
For straight shaft trimmers Quickly replace Trimmer line
through eyelets without opening head.Spool divider
prevents line tangle Holds 20 feet of 0.095" line.
Bump and Feed, semi-automatic head
For straight-shaft trimmers
Replaces 55-067-1

Part Number: 55-984
