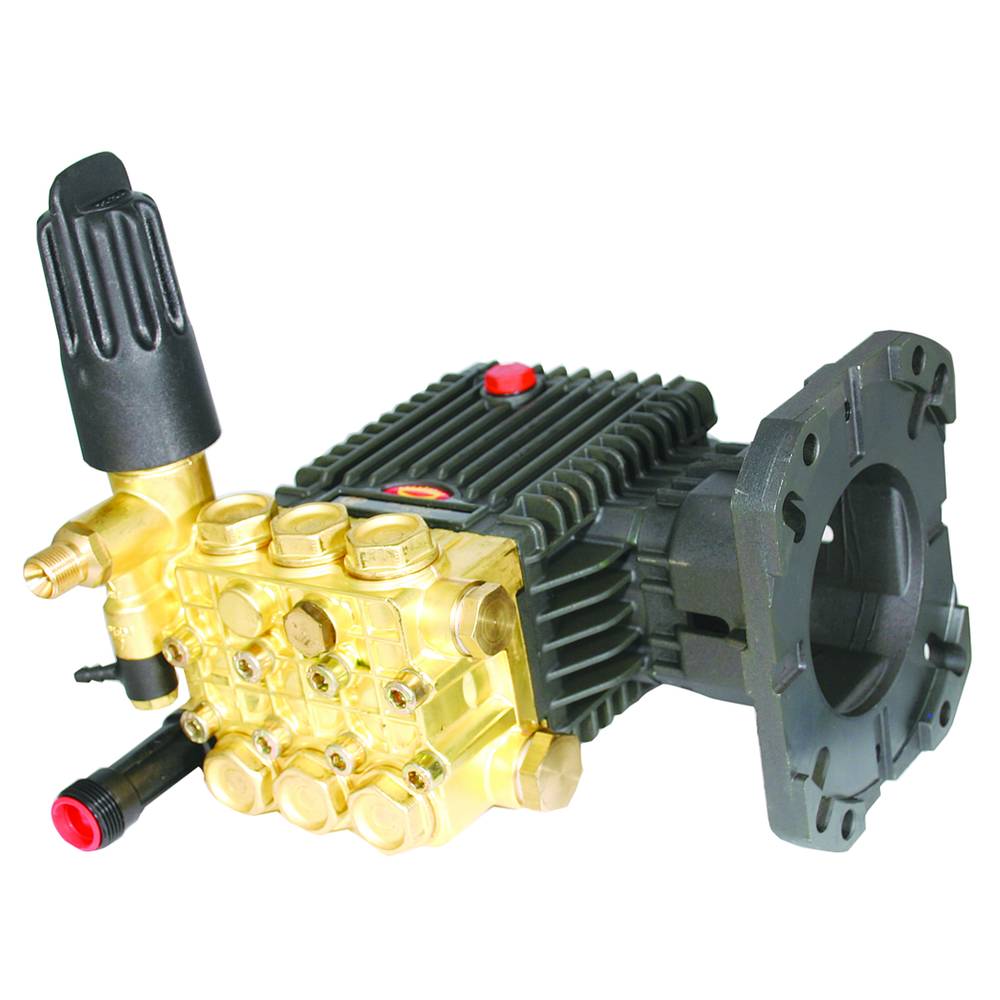

General Pump Pressure Washer Pump General Pump TX1510G8UI (Stens 030-015)

General Pump Pressure Washer Pump For General Pump TX1510G8UI (Stens 030-015)

eneral Pump Pressure Washer Pump
General Pump TX1510G8UI
Replaces:
General Pump TX1510G8UI
Specifications:
Built-in unloader and downstream injector on left side of manifold
Crankcase oil capacity 14 Ounce
Flanged for direct couple to gasoline engines; 1" hollow shaft
Inlet port Thread 1/2"-14 BSP-F and Discharge port Thread 3/8"-19 BSP-F
Large, lightweight connecting rods, New long life low and high pressure seals and Forged brass manifold with exclusive lifetime Warranty
Manufacturer Warranty applies
Maximum fluid Temperature : 165? F
Maximum Inlet pressure: 125 PSI
Maximum Inlet required, flooded
TX Series 63, Triplex plunger pump, SAE J609B
Bore Size 0.591"
Gallons Per Minute 4
Horse Power 12.300
Made By An OEM Supplier
PSI 3000
Type Horizontal Gas Flanged
