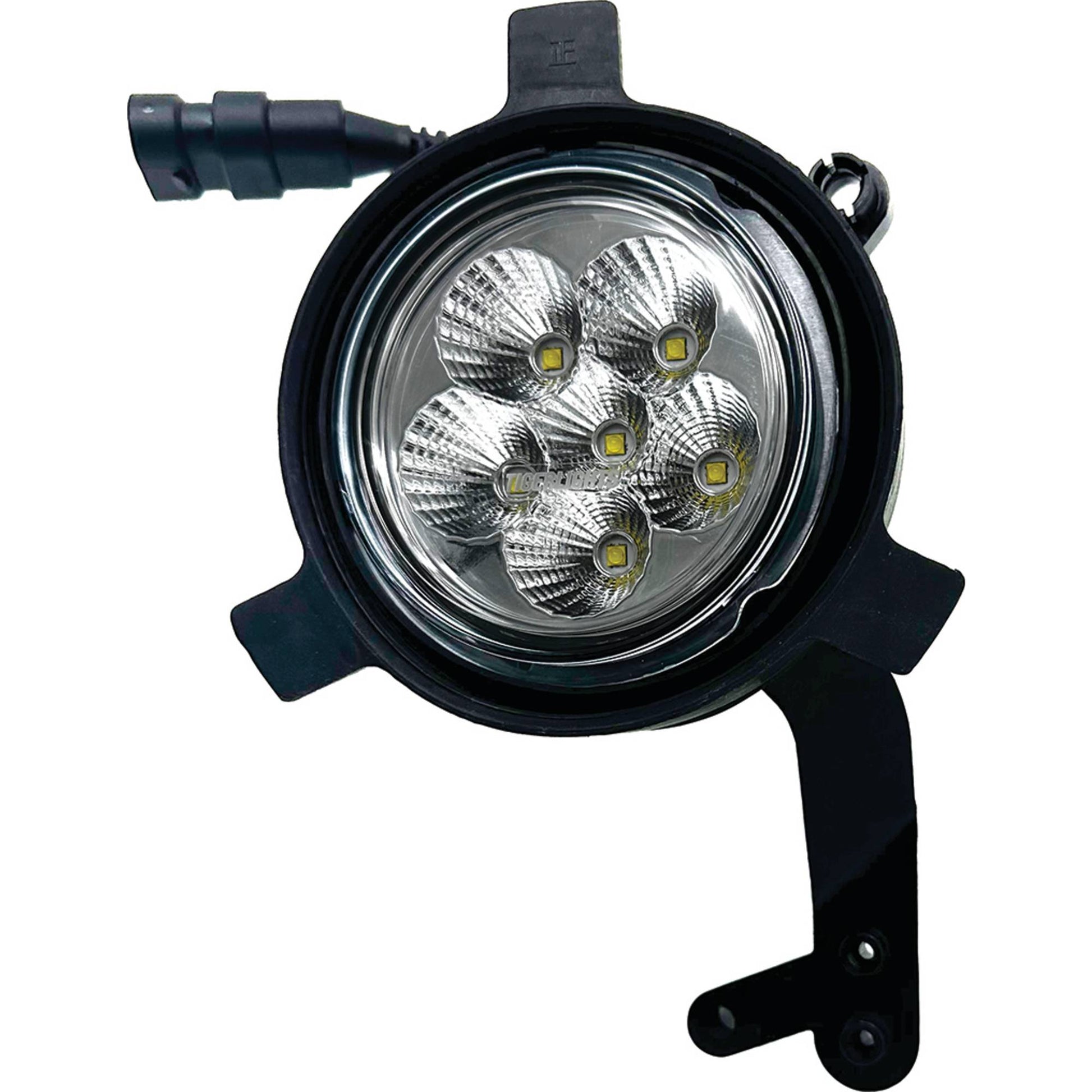

Tiger Lights LED Headlight John Deere R Series (Stens TL8640)

Tiger Lights LED Headlight For John Deere R Series (Stens TL8640)

Tiger Lights LED Headlight
John Deere R Series
Replaces:
John Deere AL206153, AL206154, RE288376, RE288377, RE296513, RE296514, RE296679, RE29680
Fits Models:
John Deere 4940, 6105M, 6105R, 6110R, 6120R, 6130R, 6135M, 6135R, 6140M, 6140R, 6145M, 6145R, 6150M, 6150R, 6155M, 6155R, 6155RH, 6170M, 6170R, 6175M, 6175R, 6190R, 6195M, 6195R, 6210R, 6215R, 6230R, 6250R, 6250R, 6250R, 7200R, 7215R, 7230R, 7250R, 7260R, 7270R, 7280R, 7290R, 7310R, 7R 210, 7R 230, 7R 250, 7R 270, 7R 290, 7R 310, 7R 330, 7R 350, 8225R, 8235R, 8245R, 8260R, 8270R, 8285R, 8295R, 8310R, 8310RT, 8320R, 8320RT, 8335R, 8335RT, 8345R, 8345RT, 8360R, 8360RT, 8360T, 8370R, 8370RT, 8400R, 9360R, 9370R, 9410R, 9420RX, 9460R, 9460RT, 9470R, 9470RT, 9470RX, 9510R, 9510RT, 9520R, 9520RT, 9520RX, 9560R, 9570R, 9570RT, 9570RX, 9620R, 9620RX, R4023, R4030, R4038, R4040I, R4044, R4045, R4050I, R4060, R4140I, R4150I
Specifications:
Plug and Play
Replaces the smaller inner round light in the right upper headlight, closest to the center
Small round insert light for John Deere R series tractor
This light does not replace the whole housing
Uses original mounting bracket
Amps 1.660
Depth 3.500"
Height 7.500"
Light Pattern Flood
Lumens 2200
Volt 12-24
Warranty Limited Lifetime
Watt 20
Width 4.750"
