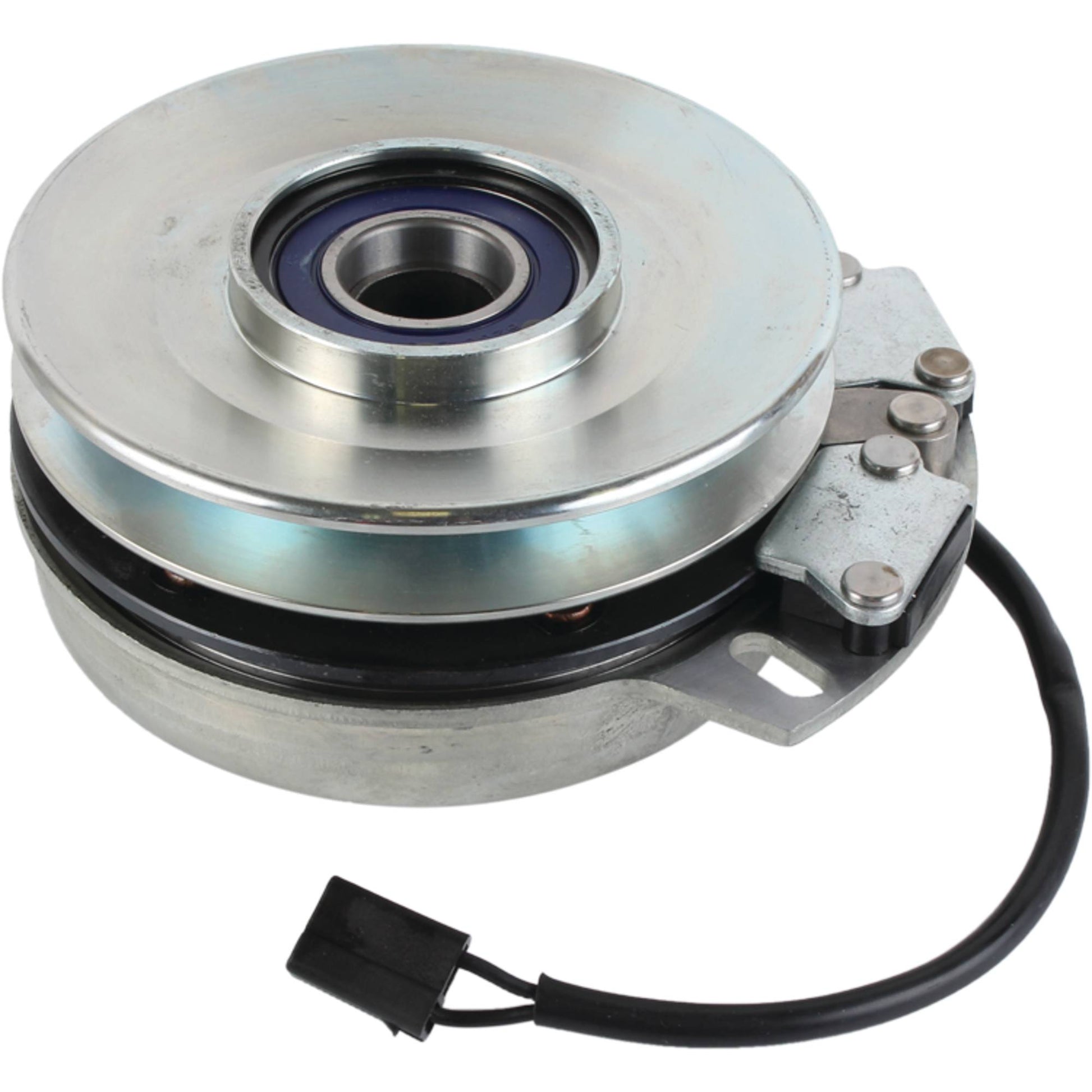

Xtreme PTO Clutch Ariens 00191700 (Stens X0005A)

Xtreme PTO Clutch For Ariens 00191700 (Stens X0005A)

Xtreme PTO Clutch
Ariens 00191700
Replaces:
Ariens 00191700, 33-130
Everride 00191700
Gravely 00191700
Warner 5219-45
Fits Models:
Ariens PM34Z, Zoom 2550XL, Zoom 2552XL, Zoom 2560XL and Zoom series
Encore YJ1840, YJ2044 and YJ2348
Gravely GR, HE, HR, PM and ZT series
WorldlawnYJ1840, YJ2044 and YJ2348


Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 6"
Rotation Direction Counter Clockwise
