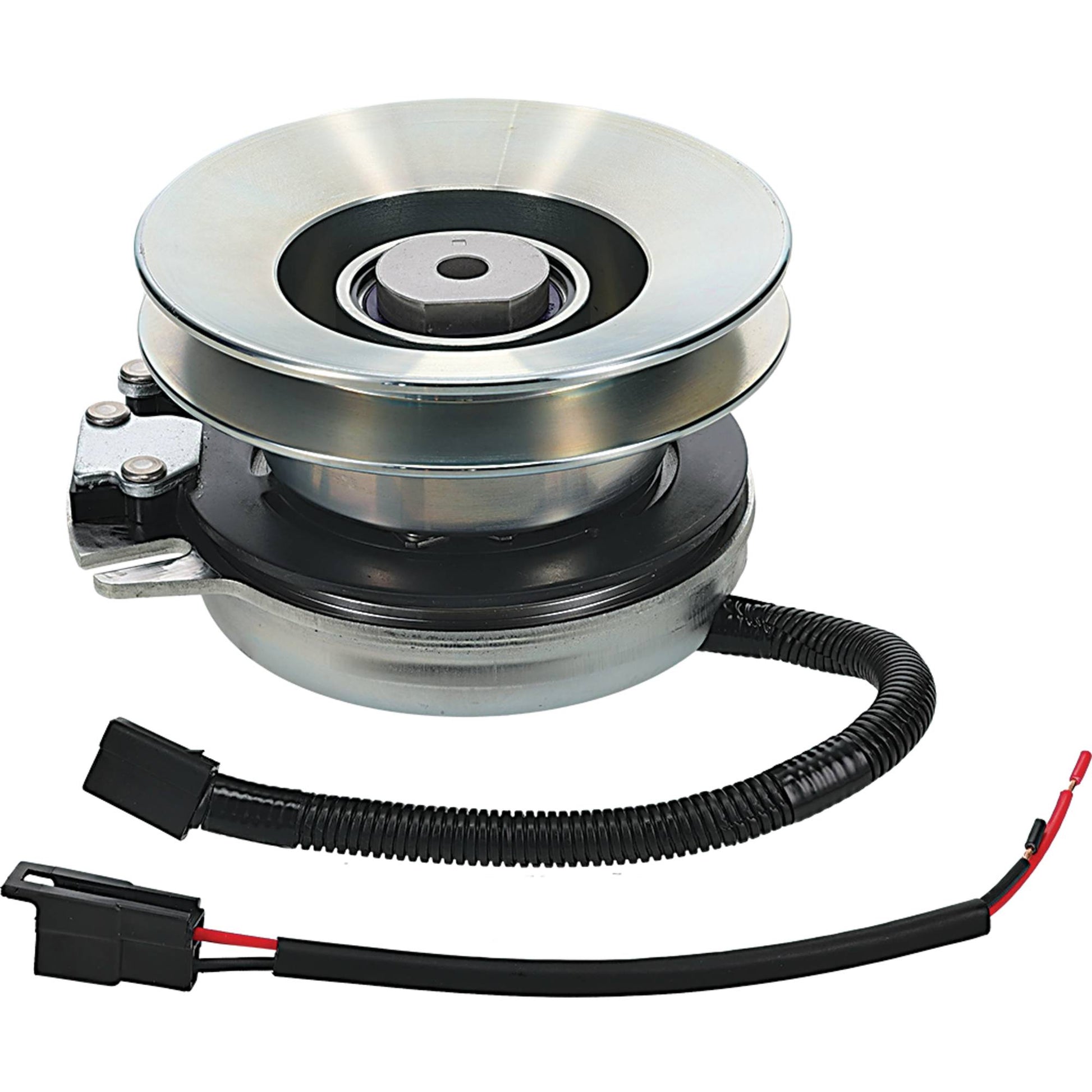

Xtreme PTO Clutch Ariens 03292300 (Stens X0013)

Xtreme PTO Clutch For Ariens 03292300 (Stens X0013)

Xtreme PTO Clutch
Ariens 03292300
Replaces:
Ariens 00617400, 03292300
Bolens 717-04163, 717-04163A, 917-04163, 917-04163A
Craftsman 717-04163, 717-04163A, 917-04163, 917-04163A
Cub Cadet 717-04163, 717-04163A, 917-04163, 917-04163A
Gravely 00617400, 03292300
Huskee 717-04163, 717-04163A, 917-04163, 917-04163A
MTD 717-04163, 717-04163A, 917-04163, 917-04163A
Swisher5217-43
Troy-Bilt 717-04163, 717-04163A, 917-04163, 917-04163A
Warner 5217-32, 5217-33, 5217-43
White 717-04163, 717-04163A, 917-04163, 917-04163A
Fits Models:
Ariens HVZ1840, Zoom 1634, Zoom 1840 and Zoom 2350
Bolens L1046, L1050, LT1042, LT1045, LT1046, LT1050, SLT1550 and SLT1554
Cub Cadet LT1042, SLT1550 and SLT1554
Gravely 1734ZT, 2040YJ, 2040ZT, 2250ZT, 2350ZT, 2550YJ and ZTXL1734
MTD LT1042, SLT1550 and SLT1554
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 6"
Rotation Direction Counter Clockwise
