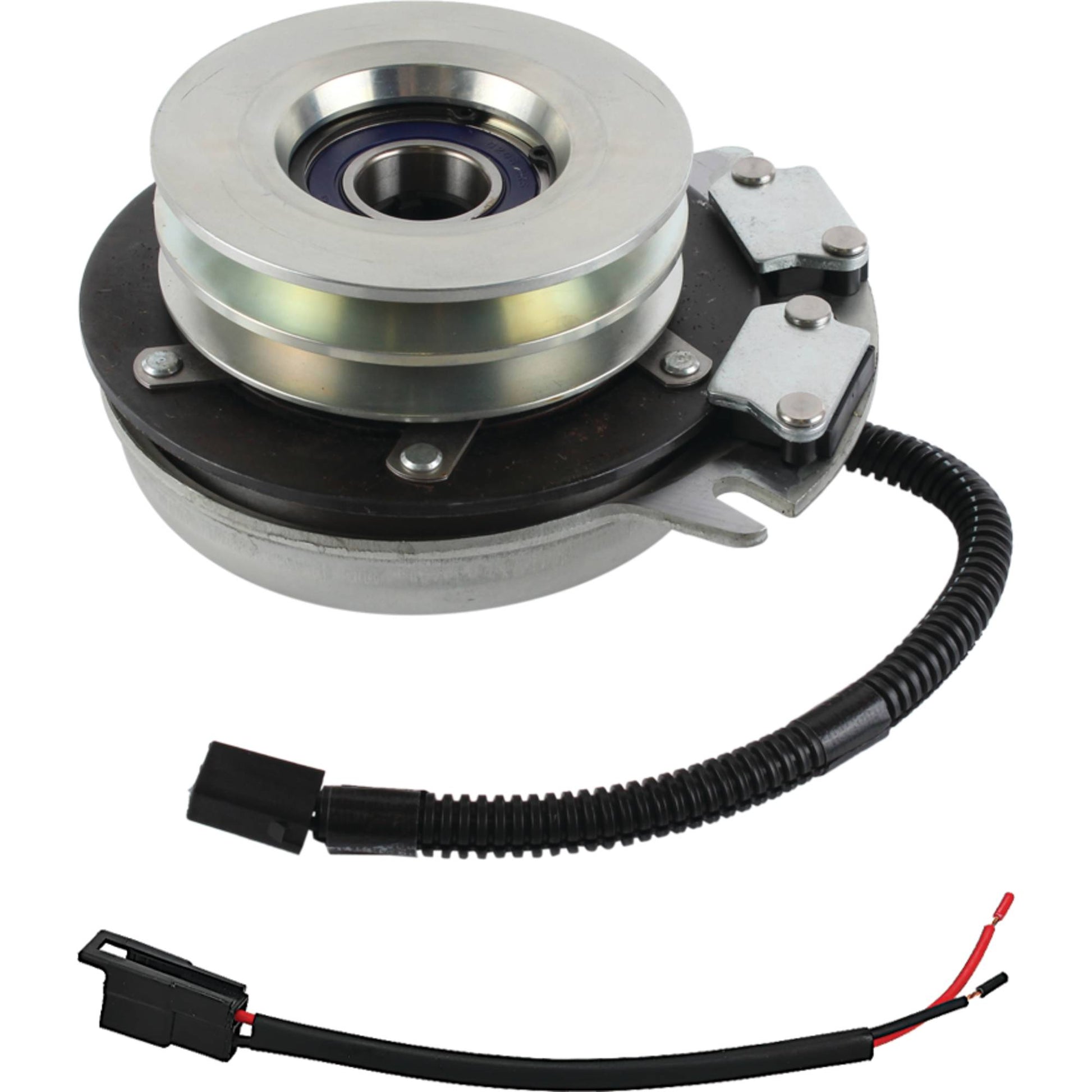

Xtreme PTO Clutch Ariens 00574100 (Stens X0020)

Xtreme PTO Clutch For Ariens 00574100 (Stens X0020)

Xtreme PTO Clutch
Ariens 00574100
Replaces:
Ariens 00554300, 00574100, 554300, 574100
Grasshopper 388762, 604180
Gravely 00554300, 00574100, 554300, 574100
Stens 255-319
Warner 5218-13, 5218-27
Woods 073559, 388762, 604180, 70903, 73112, 73113, 73559
Fits Models:
Grasshopper 612
Woods Mow 'n Machine 1850, 1855, 1860, 5120-5140, 5160-5180, 6140-6160 and 6170-6180
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width Double A
ID 1"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 4 7/8"
Rotation Direction Clockwise
