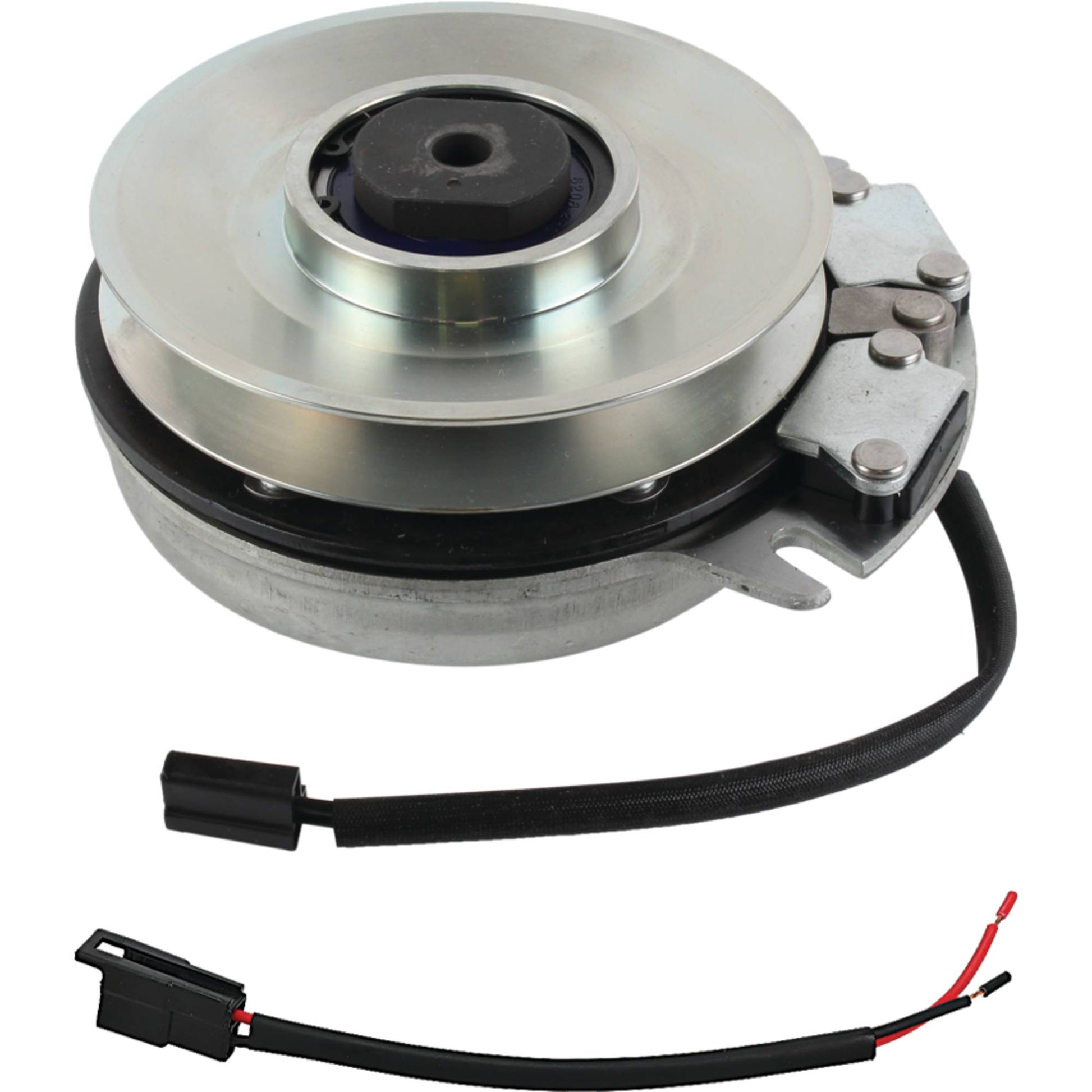

Xtreme PTO Clutch Ariens 09266700 (Stens X0044)

Xtreme PTO Clutch For Ariens 09266700 (Stens X0044)

Xtreme PTO Clutch
Ariens 09266700
Replaces:
Ariens 00389900, 09208000, 09232700, 09266700
Craftsman 00389900
Gravely 00389900, 09208000, 09232700, 09266700, 389900, 9232700
Great Dane GDA10122
Lastec 019603
Warner 5218-105, 5218-117, 5218-299, 5218-31, 5218-86, 5218-94
Wood-MizerP604
Woods 00389900, 09232700, 09266700
Fits Models:
Ariens PM Series, Zoom 2050, Zoom 2552XL and Zoom 2560XL
Gravely PM252Z and PM series
Great Dane Chariot and Chariot LX
Lastec 325D and 325E, 1997-1998
Woods Mow 'n Machine M1950, M1952, M2050, M2250, M2560 and M2760
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1 1/8"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 6"
Rotation Direction Counter Clockwise
