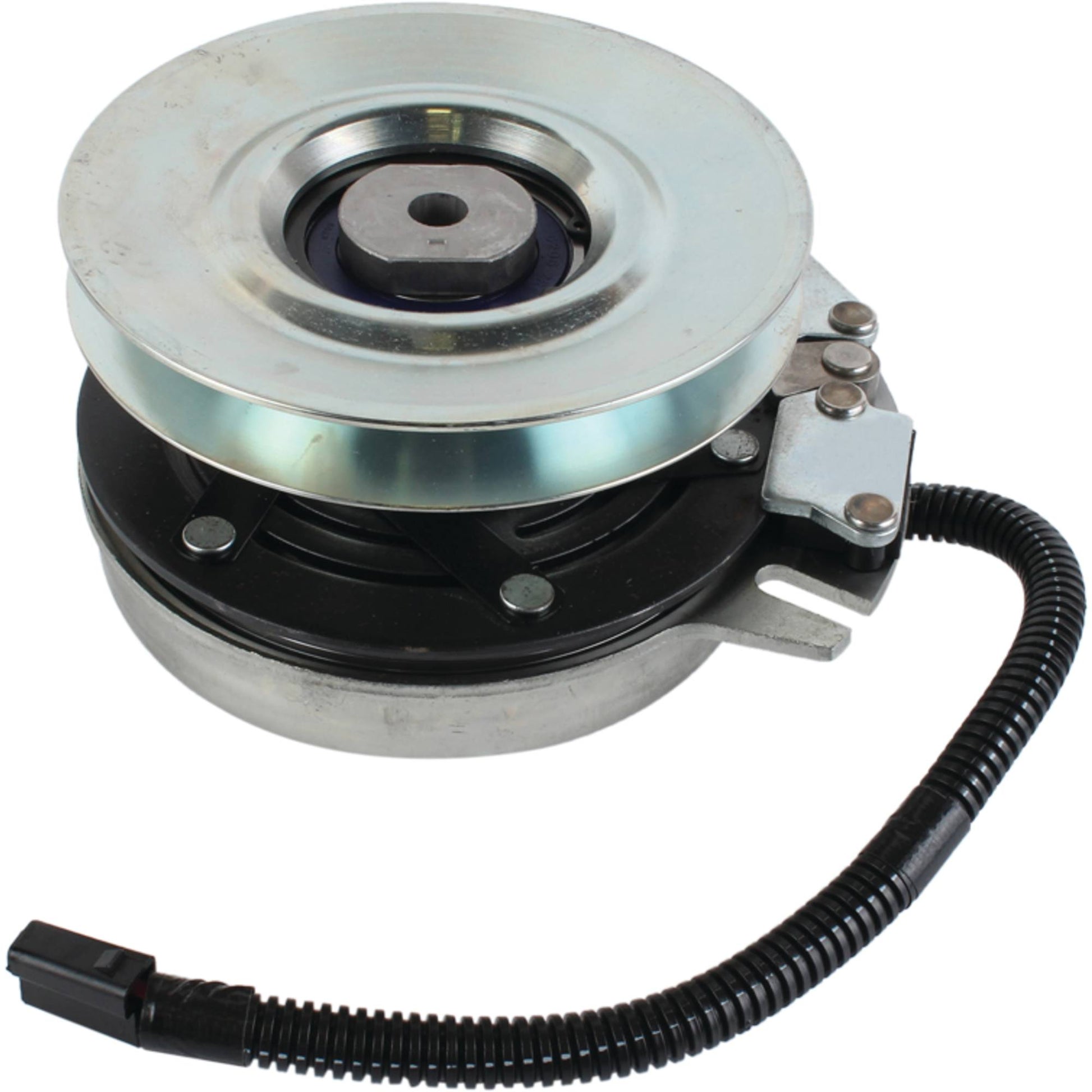

Xtreme PTO Clutch Hustler 601784K (Stens X0108A)

Xtreme PTO Clutch For Hustler 601784K (Stens X0108A)

Xtreme PTO Clutch
Hustler 601784K
Replaces:
Big Dog 601784, 601784K
Hustler 601784, 601784K
Fits Models:
Big Dog A, C, R and T series
Hustler 929125, 929240, 929265, 929463, 929851, 929869, 929133, 929471, 929596, 930107, 930115, 930206, 930222, 930388, 930396, 930404, 930412 and 930784
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 6"
Rotation Direction Counter Clockwise
