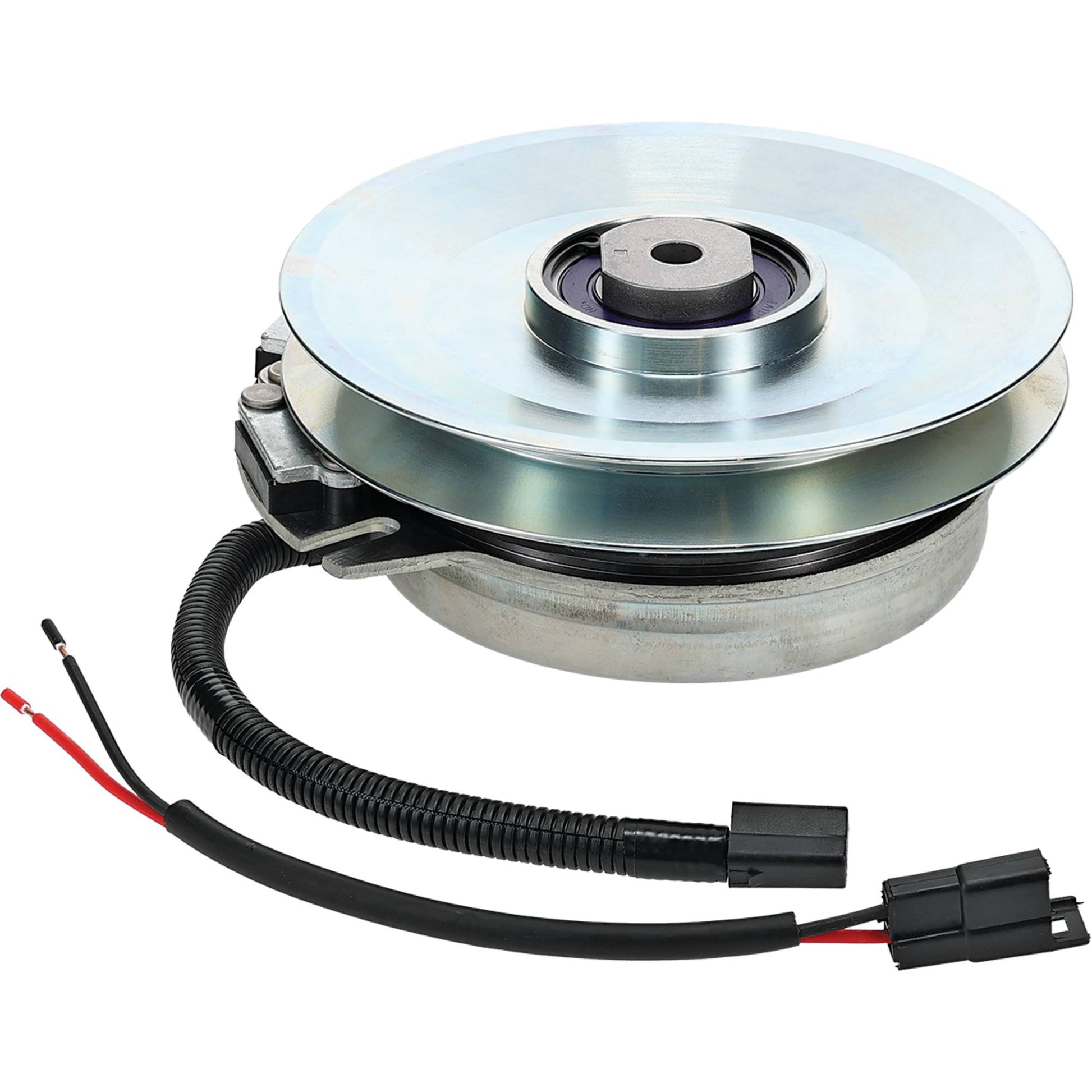

Xtreme PTO Clutch Toro 109-7035 (Stens X0138)

Xtreme PTO Clutch For Toro 109-7035 (Stens X0138)

Xtreme PTO Clutch
Toro 109-7035
Replaces:
Exmark 104-3624, 109-7035
Toro 104-3624, 109-7035
Fits Models:
Exmark Lazer Z CT, Serial No. 370,000 and higher
Toro TimeCutter 74401, 74502 and 74601, Serial No. 220000001-240999999; TimeCutter 74701, Serial No. 230000001-230999999; TimeCutter 74602 and 74802, Serial No. 240000001-240999999; TimeCutter 74405, 74801 and 74702, Serial No. 230000001-240999999; TimeCutter 74401, 74501, 74502, 74601 and 74701, Serial No. 210000001-220999999; TimeCutter 74801, Serial No. 220000001-220999999; and Z Master Z400, Serial No. 250000001-280999999
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 7 1/4"
Rotation Direction Counter Clockwise
