Xtreme PTO Clutch MTD 917-3340 (Stens X0148)

Xtreme PTO Clutch For MTD 917-3340 (Stens X0148)

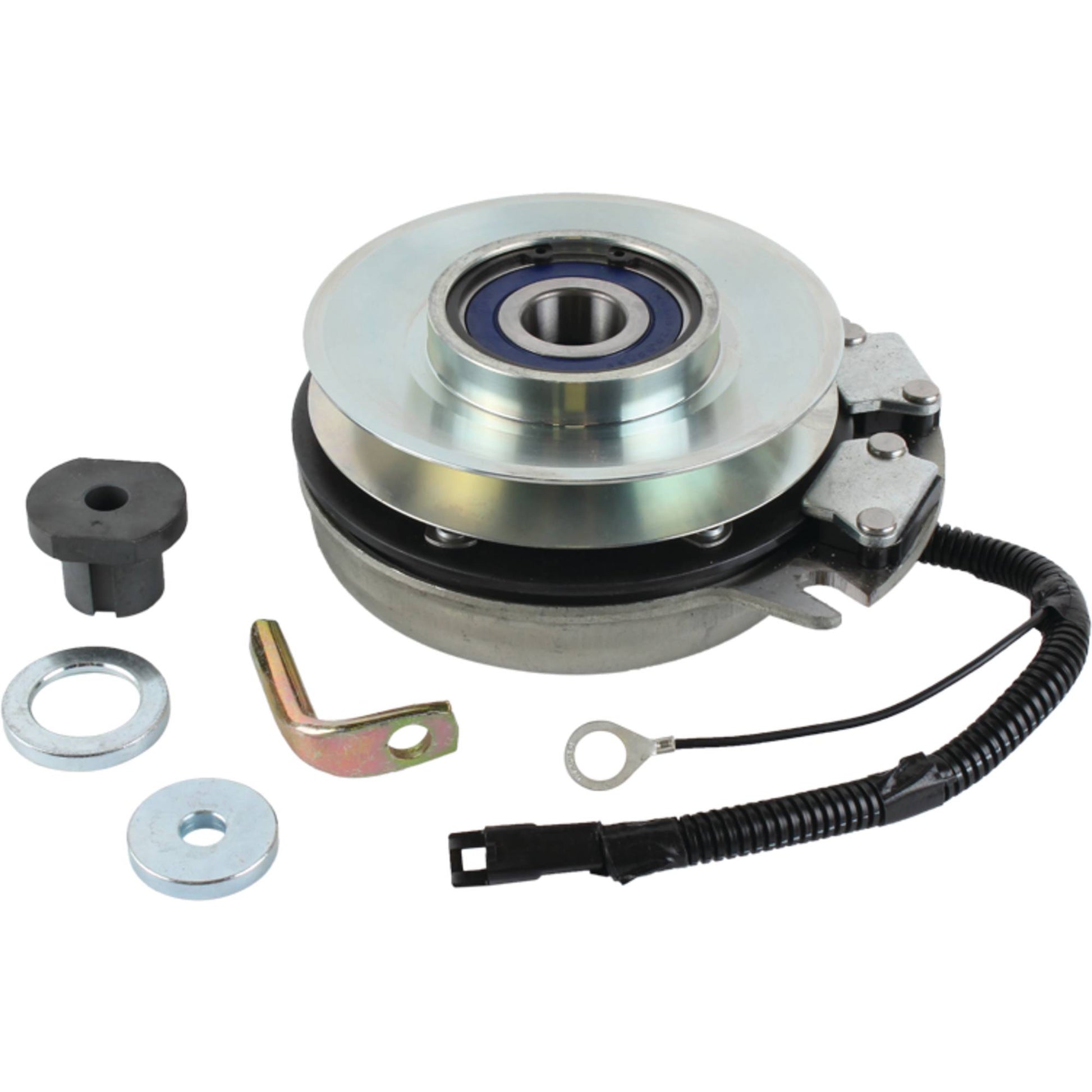

Xtreme PTO Clutch
MTD 917-3340
Replaces:
Cub Cadet 717-3340, 917-3340
MTD 717-3340, 917-3340
Warner 5209-46
Fits Models:
Cub Cadet 1861, Serial No. 821,060-836,000; 1862, Serial No. 821,060-836,000; 1863, Serial No. 836,001-880,000; 1864, Serial No. 836,001-880,000; 2082, Serial No. 821,060-836,000; 2084, Serial No. 836,000-864,500; and 2284, Serial No. 864,501-899,000
MTD 1861 and 1862, Serial No. 821,060-836,000; 1863 and 1864, Serial No. 836,001-880,000; 2082, Serial No. 821,060-836,000; 2084, Serial No. 836,000-864,500; and 2284, Serial No. 864,501-899,000
Specifications:
Does not fit all applications - Verify part number by referring to model Specifications:
Heavy Duty "FatBoy Series" Upgrade
High Torque Cool Coil Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Belt Width 1/2" or 5/8"
ID 1 1/8"
Pulley Diameter 6"
Rotation Direction Counter Clockwise
Documents
Xtreme Clutch Installation Instructions Download
