Xtreme PTO Clutch Exmark 1-611223 (Stens X0165A)

Xtreme PTO Clutch For Exmark 1-611223 (Stens X0165A)

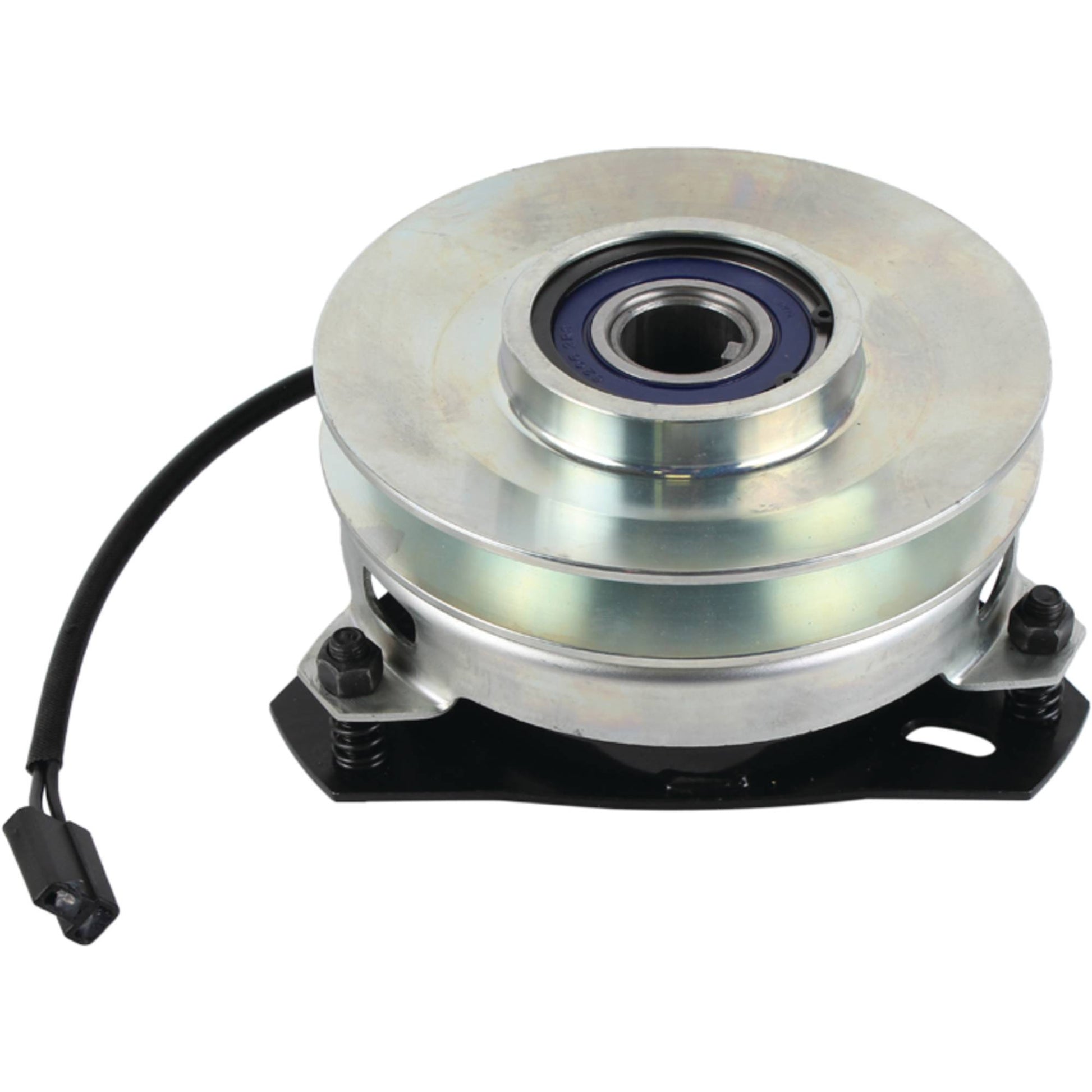

Xtreme PTO Clutch
Exmark 1-611223
Replaces:
Bobcat 1226028, 1226167, 126167, 128028, 128132
Exmark 1-601979, 1-603463, 1-603539, 1-611190, 1-611223, 601979, 603463, 603539, 611190, 611223
Ferris 1521823, 21823, 5021823
Scag 461074, 481633, 48786
Simplicity 1521823, 21823, 21823SM, 5021823, 5021823SM
Snapper 21823, 2840890, 29678, 5021823, 7029678, 7029678YP
Snapper Pro21823, 29678, 5021823, 7029678
Warner 5215-13, 5215-18, 5215-99
Fits Models:
Bobcat 3100 series and T1861
Exmark Turf Range r 1800, Turf Tracer 5-Speed, Serial No. 89,999 and lower and Turf Tracer Hydro, Serial No. 70,000-129,999 and 190,000-319,999
Ferris 5900027, 5900030, 5901009, 5901012, 5901014, 5901015, 5901194, BGF36K, BGF52K and Ultra Belt GD series
Scag SSZ, STHM, SW and SWZ series
Snapper 7080717, 7080682, 7080683, 7080685, 7080686, 7080687 and 7080695
Snapper Pro7080682, 7080683, 7080685, 7080686, 7080687, 7080695 and 7080717
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 6"
Rotation Direction Clockwise
