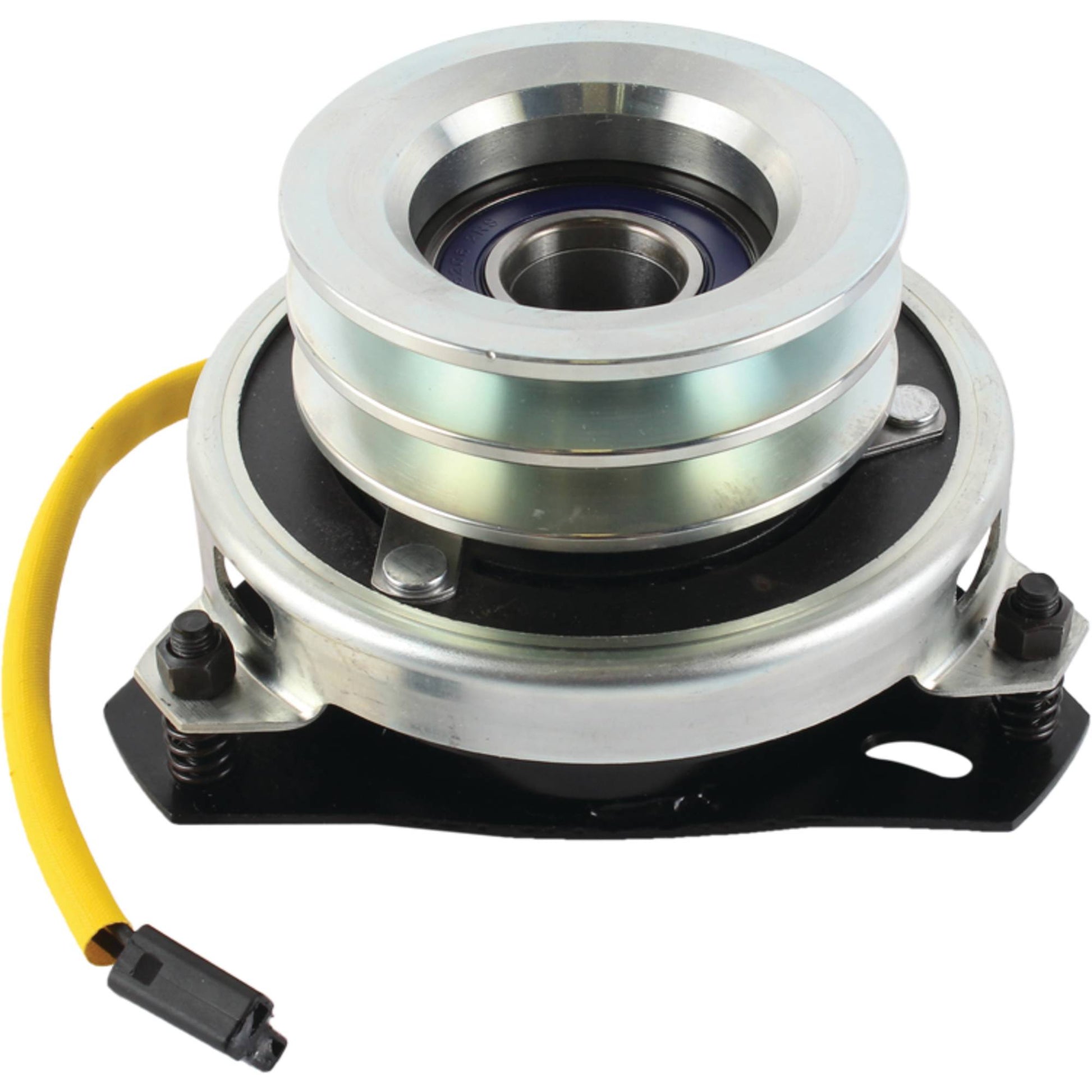

Xtreme PTO Clutch Simplicity 1686737SM (Stens X0175A)

Xtreme PTO Clutch For Simplicity 1686737SM (Stens X0175A)

Xtreme PTO Clutch
Simplicity 1686737SM
Replaces:
Simplicity 1686737SM, 1708527
Warner 5215-24
Fits Models:
Simplicity Sunstar and Sunstar 20 series
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width Double A
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 4 1/8"
Rotation Direction Counter Clockwise
