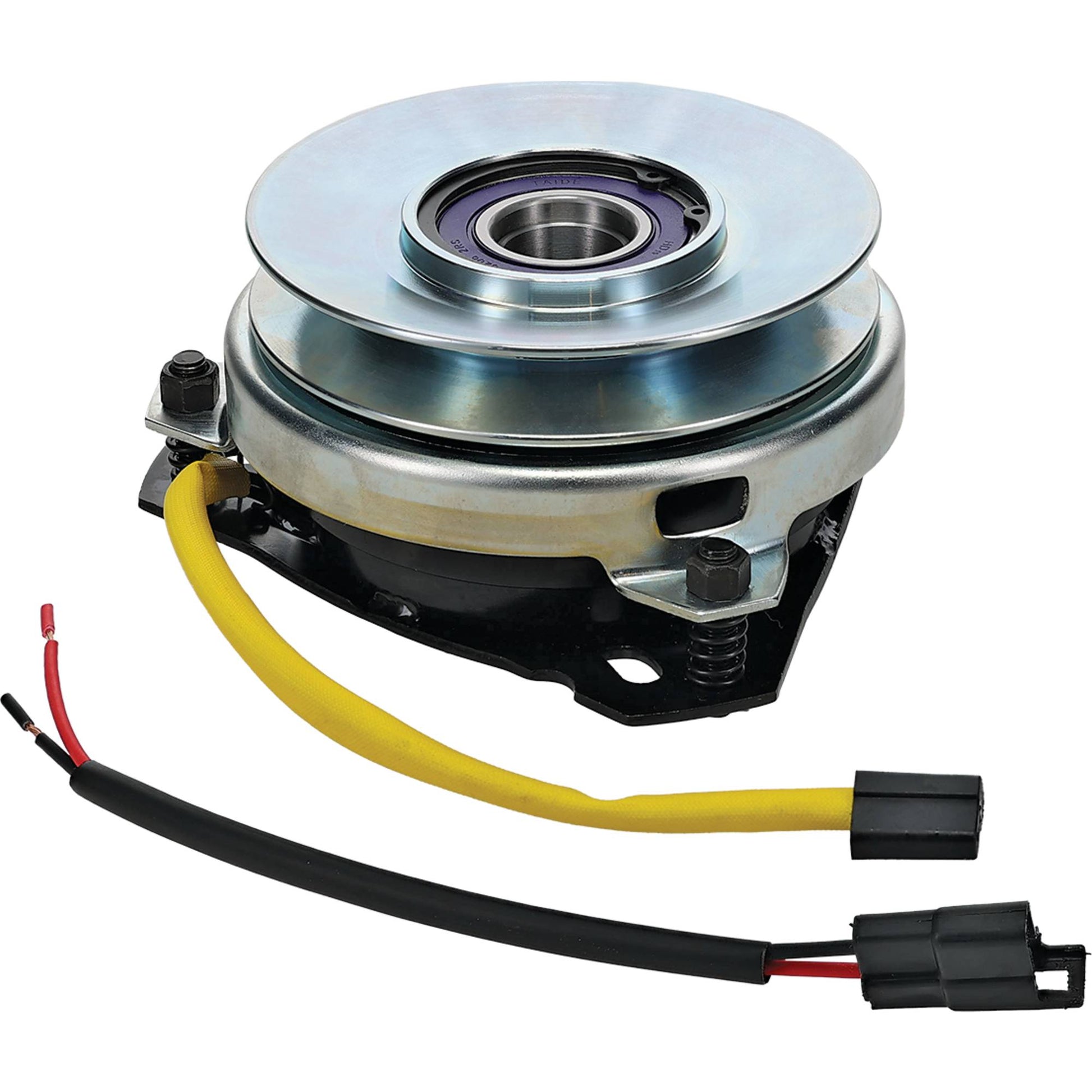

Xtreme PTO Clutch MTD 917-3497 (Stens X0185)

Xtreme PTO Clutch For MTD 917-3497 (Stens X0185)

Xtreme PTO Clutch
MTD 917-3497
Replaces:
Agco 1692430, 1703816SM
Bolens 1742518, 1755341, 1755341P, 717-0983, 717-1708, 717-3497, 917-0983, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Case IH 990947, C32372, C33197, C47443
Craftsman 16343, 1703816SM, 1742518, 1755341, 1755341P, 19982, 53679, 7016343, 7053679, 707402, 7074022, 7074022YP, 717-0983, 717-1708, 717-3036, 717-3497, 74022, 7-4022, 917-0983, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Cub Cadet 1742518, 1755341, 1755341P, 717-0983, 717-0983P, 717-1708, 717-3036, 717-3497, 917-0983, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Ford /New Holland 9800686, LB740401
Ingersoll Rand 990947, C32372, C33197, C47443
Jacobsen 990947, C33197, C47443
King Cat232201
Lawn-Boy 243038, 740401
MTD 1742518, 1755341, 1755341P, 717-0983, 717-0983P, 717-1708, 717-3036, 717-3497, 917-0983, 917-1708, 917-3497, 959-3230
Simplicity 1703816, 1703816SM, 71703816
Snapper 16343, 19982, 53679, 7016343, 7019982, 7053679, 7053679YP, 707402, 7074022, 7074022YP, 74022, 7-4022
Toro 113426, 11346, 99-8012
Troy-Bilt 1742518, 1755341, 1755341P, 717-1708, 717-3036, 717-3497, 917-1708, 917-3497, 959-3230, B1755341, GW-1755341P, GW-B1755341
Warner 1-5210-3, 5210-12, 5210-3, 5210-33, 5210-41, 5210-49, 5210-56, 5210-62, 5215-103, 5215-108, 5215-129, 5215-59
White 717-0983, 717-1708, 717-3497, 917-0983, 917-1708, 917-3497
Fits Models:
Bolens FST14, FST15, LR13, LT14, LT145, LT15, LT16 and LT165
Cub Cadet 1110, 1105, 1215, 1220, 1225, 1325, 1405, 1415, 1420, 1605, 1610, 1615, 1620, 1715, 1720,1730, LT1018, LT1650, LT1800, LT1850 and LT2150
Lawn-Boy 156729, 52140, 52144A, 52145A, 52153, 52161, 52163, 52163A and 52164, 1991-1992
MTD 1527, 1600, 1800, 1170, 1180, 1515, 1517, FST14, FST15, LT13, LT14, LT15, LT16, LT145 and LT165
Simplicity 1613G, 1613H, 1615G, 1615H, 1616H, 2614H, 2616H, LT, LTG and LTH series
Snapper GT180, GYT, HT, LT, RYT, YT series, ZTR Scrambler, series 5-6, ZTR Twin Stick, series 6 and ZTR Yard Cruiser series 1-4
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 5 5/16"
Rotation Direction Counter Clockwise
