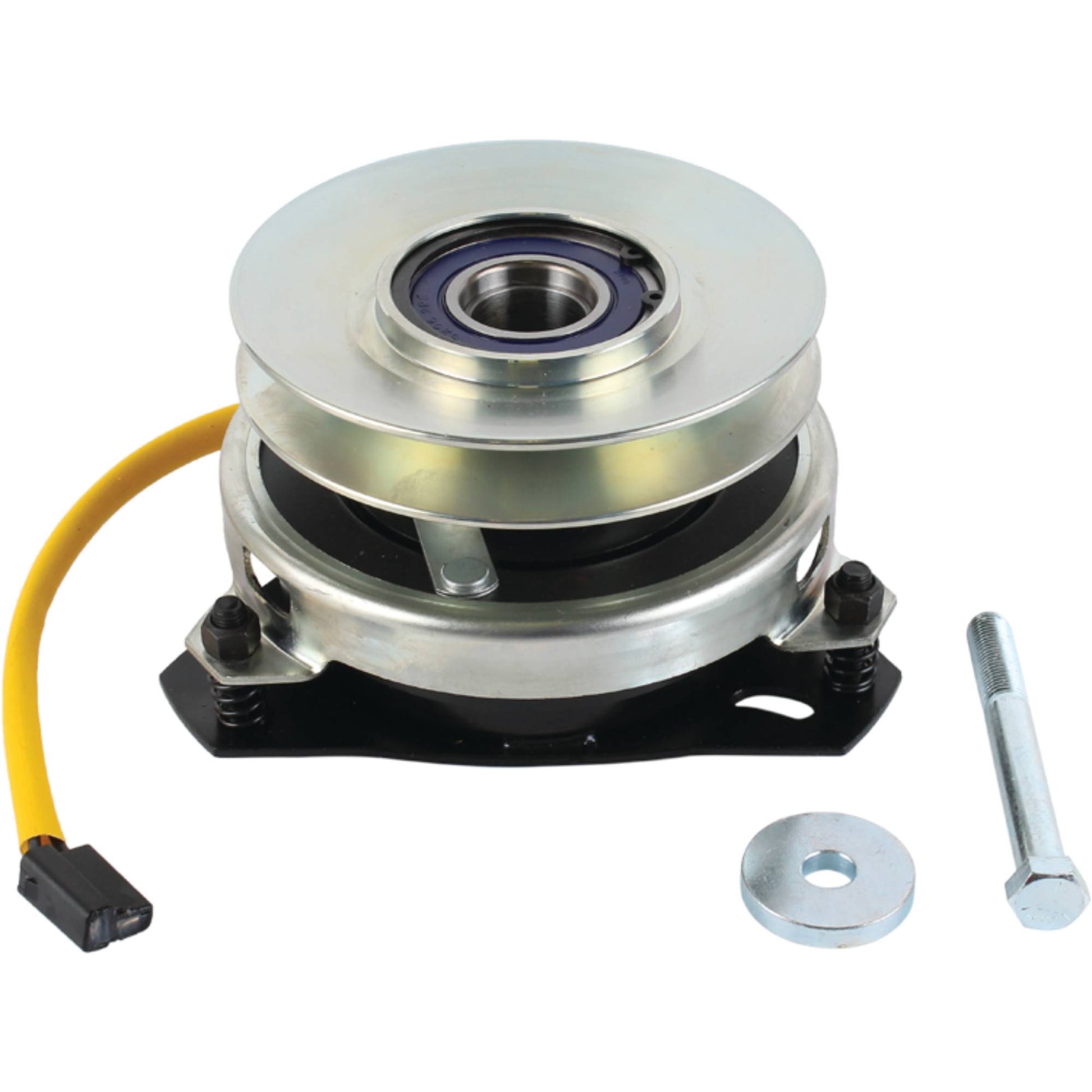

Xtreme PTO Clutch AYP 532174509 (Stens X0191A)

Xtreme PTO Clutch For AYP 532174509 (Stens X0191A)

Xtreme PTO Clutch
AYP 532174509
Replaces:
AYP 124648X, 140923, 170056, 174509, 532140923, 532150283, 532170056, 532174509, 917140923, 917170056, 917532140923, 917532170056
Craftsman 124648X, 140923, 170056, 174509, 532140923, 532150283, 532170056, 532174509, 917532140923, 917532170056
Cub Cadet 170056, 532140923, 532170056
Dixon 532150283
Electrolux 140923, 170056, 174509, 532140923, 532150283, 532170056, 532174509, 917140923, 917532140923, 917532170056
Husqvarna 170056, 174509, 532140923, 532144509, 532148736, 532150283, 532170056, 532174509, 917170056, 917532140923, 917532170056
Poulan 140923, 170056, 174509, 532140923, 532150283, 532170056, 532174509, 917140923, 917532140923, 917532170056
Warner 5215-73
Fits Models:
AYP PP, PPR, QPGT, RKGT, TS, Y, YGT and YPQGT series
Craftsman GTH220 and HAGTH220B, 1999 and before, PP22H50K and PP22H50KA
Husqvarna GT200 series, 1996-2012, GTH200 series, 1998-2007, GTH220 series, 1995-2011, GTH225, GTH2250A, GTH2250B, GTH2250C, GTH2250XPA, GTH2350, GTH250 and GTH2550A, GTH2550B, GTH2550XPB
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 5 5/16"
Rotation Direction Counter Clockwise
