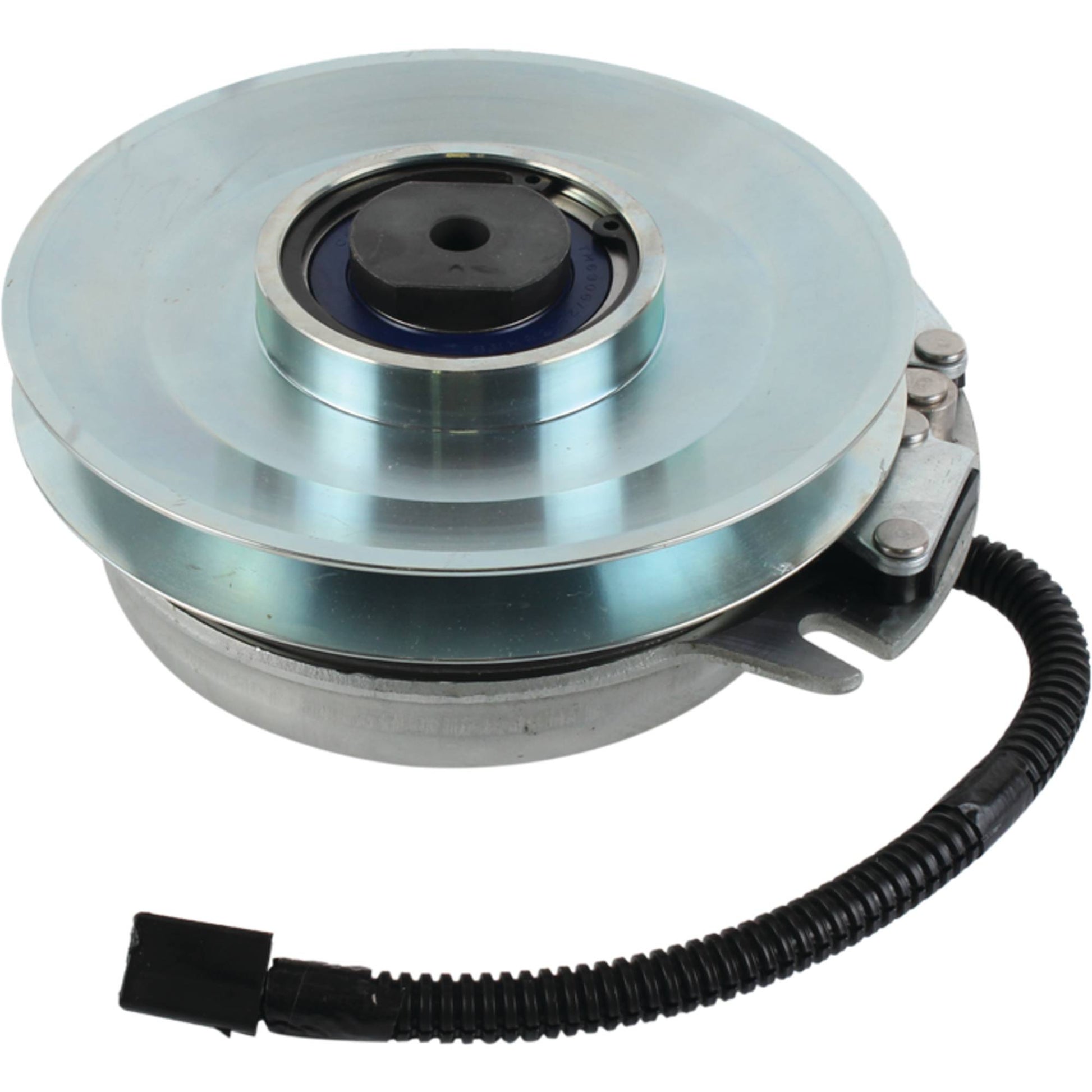

Xtreme PTO Clutch Snapper Pro 5100875SM (Stens X0224A)

Xtreme PTO Clutch For Snapper Pro 5100875SM (Stens X0224A)

Xtreme PTO Clutch
Snapper Pro 5100875SM
Replaces:
Case IH C3440
Craftsman 5100875, 5100875S, 5100875SM
Ferris 5100875, 5100875S, 5100875SM
Massey Ferguson 5100875, 5100875S, 5100875SM
McCulloch 5100875, 5100875S, 5100875SM
Simplicity 5100875, 5100875S, 5100875SM
Snapper 5100875, 5100875S, 5100875SM
Snapper Pro5100875, 5100875S, 5100875SM
Toro 94-2190
Warner 5218-158, 5218-23, 5218-288
Wright Mfg. 71410026
Fits Models:
Ferris IS2000Z and IS3100Z series
Simplicity 5900763 and 5900819 Cobalt series
Toro 518xi, 520xi, 520Lxi, 522xi, 522Lxi, 523Dxi and 550
Wright Mfg. WTZO6149T8E
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 7 1/8"
Rotation Direction Counter Clockwise
