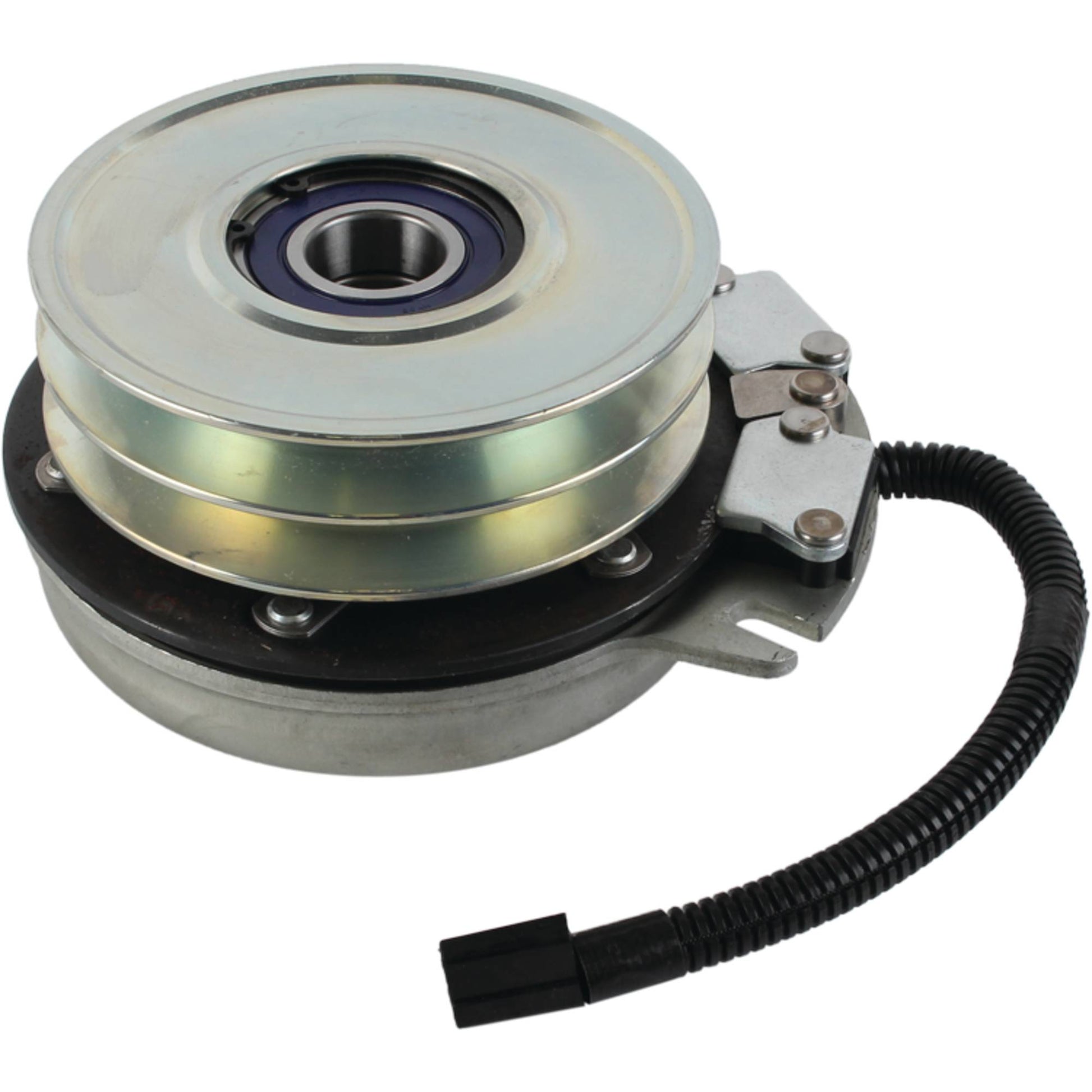

Xtreme PTO Clutch Ariens 00697900 (Stens X0226A)

Xtreme PTO Clutch For Ariens 00697900 (Stens X0226A)

Xtreme PTO Clutch
Ariens 00697900
Replaces:
Ariens 00697900, 697900
Gravely 00697900, 697900
Warner 5218-162
Fits Models:
Gravely 990100, 990101, 990102 and Rapid XZ series
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width Double A/B
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 4 13/16"
Rotation Direction Clockwise
