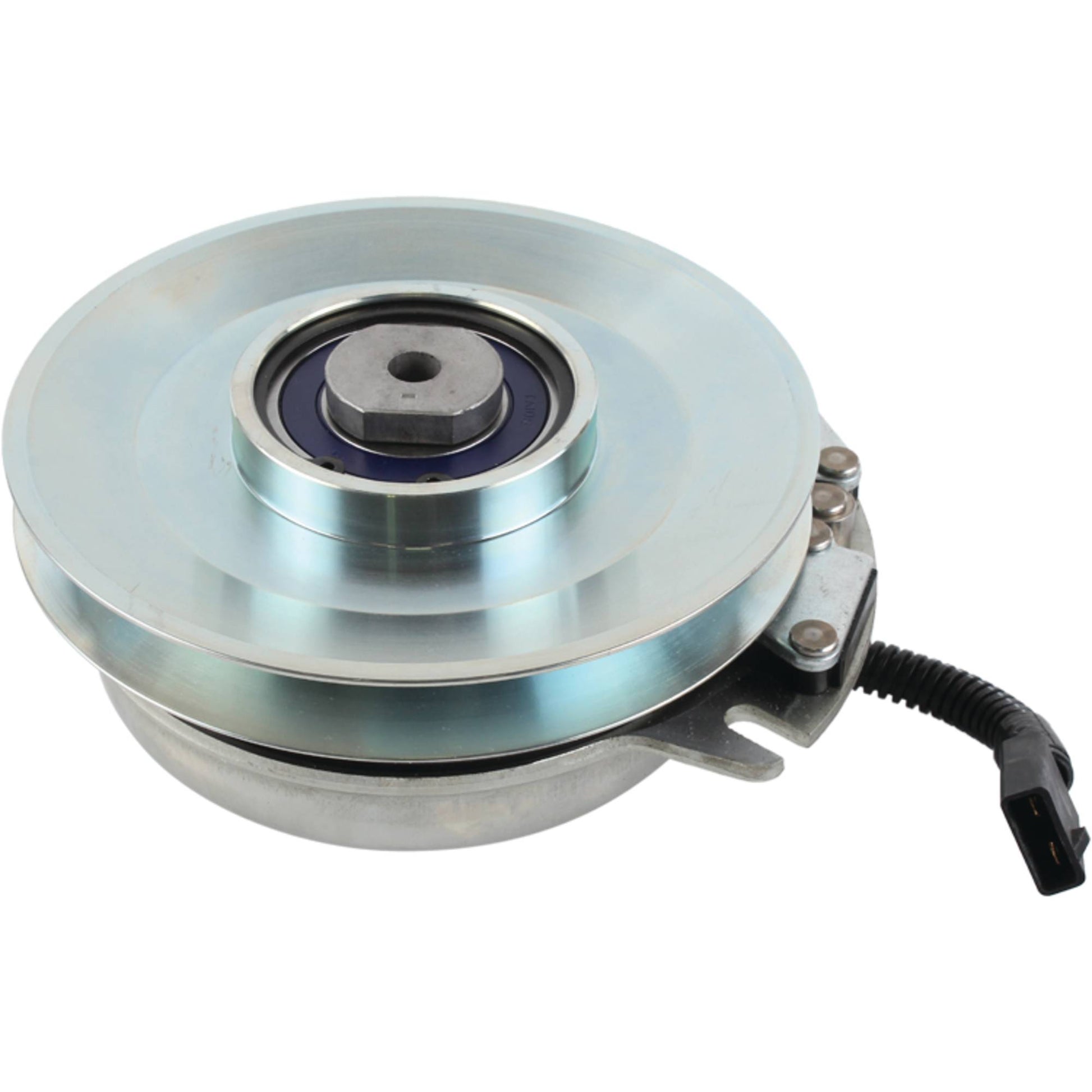

Xtreme PTO Clutch Exmark 109-9155 (Stens X0235A)

Xtreme PTO Clutch For Exmark 109-9155 (Stens X0235A)

Xtreme PTO Clutch
Exmark 109-9155
Replaces:
Exmark 109-9155
Toro 109-9155
Warner 5218-201
Fits Models:
Exmark Next Lazer Z AS, Serial No. 790,000 and higher
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1002
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 7 3/16"
Rotation Direction Counter Clockwise
