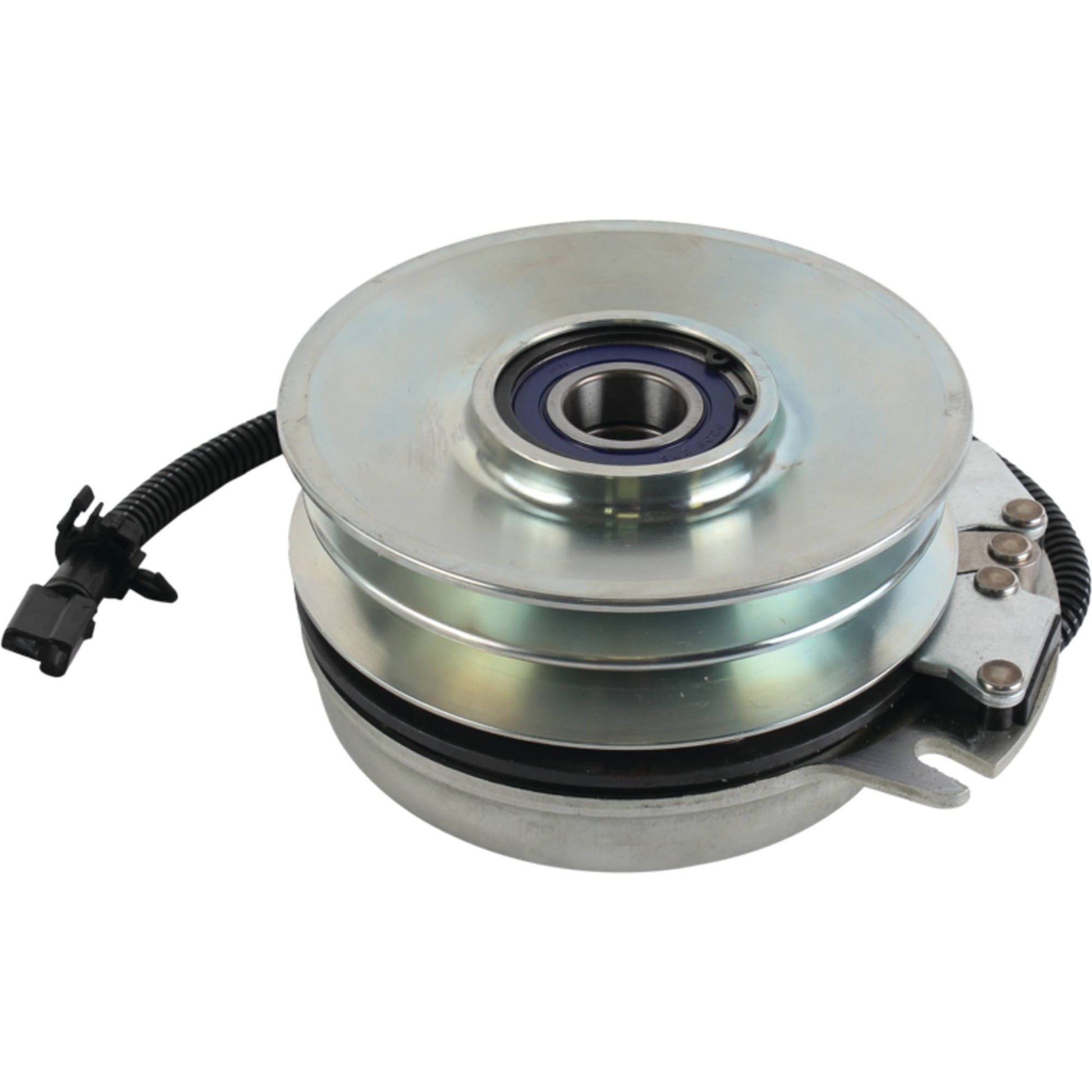

Xtreme PTO Clutch Exmark 109-6627 (Stens X0238A)

Xtreme PTO Clutch For Exmark 109-6627 (Stens X0238A)

Xtreme PTO Clutch
Exmark 109-6627
Replaces:
Exmark 103-0011, 103-0083, 109-6626, 109-6627
Toro 103-0011, 103-0083, 109-6626, 109-6627
Warner 5218-161, 5218-206, 5218-313, 5218-82
Fits Models:
Exmark Front Runner, air cooled and diesel, Serial No. 600,000 and higher; and Lazer Z XP, Serial No. 260,000-599,999
Toro Z590-D, Serial No. 280000000-311999999 and Z597-D, Serial No. 240000000-270999999
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width Double A
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 6 1/2"
Rotation Direction Clockwise
