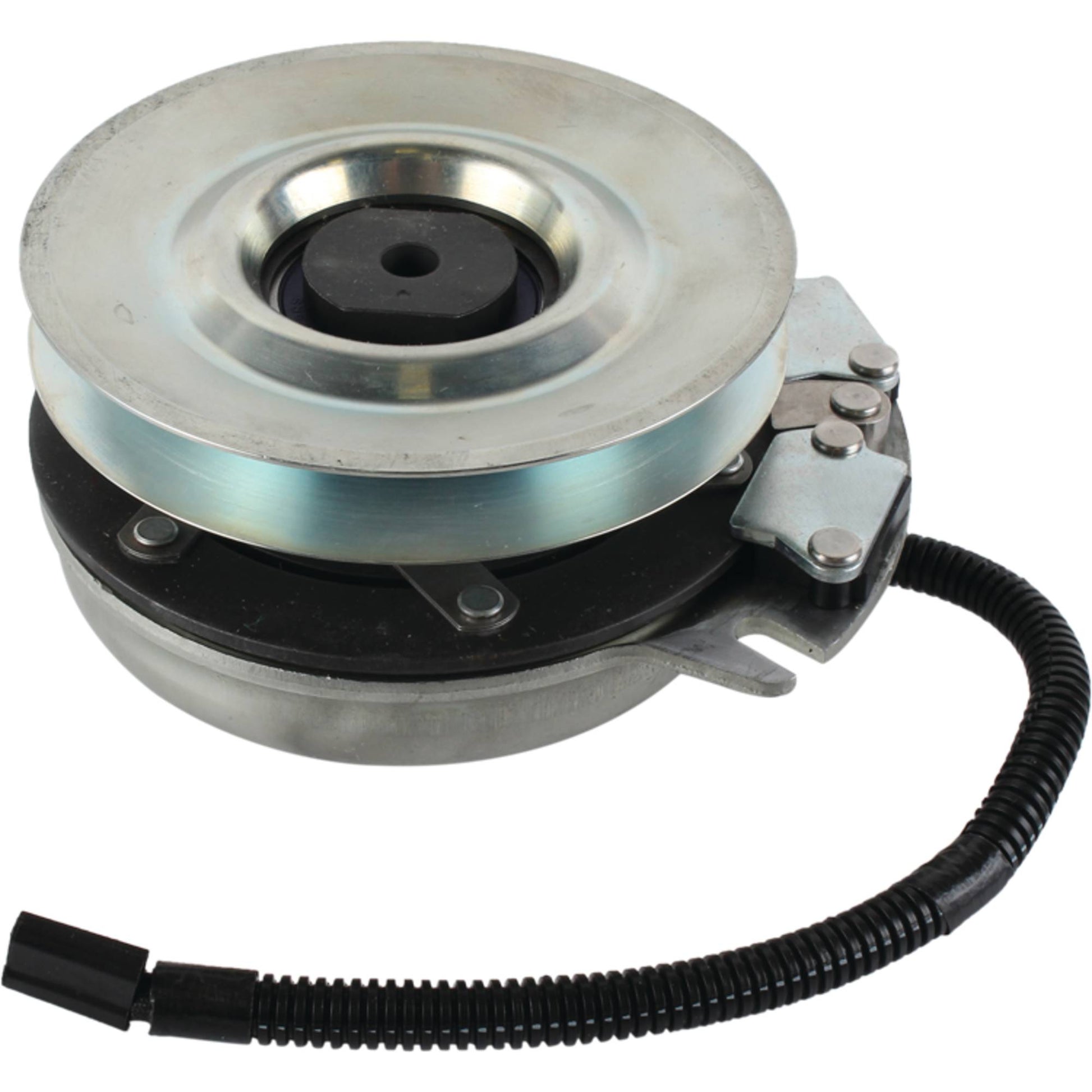

Xtreme PTO Clutch Hustler 603273K (Stens X0272A)

Xtreme PTO Clutch For Hustler 603273K (Stens X0272A)

Xtreme PTO Clutch
Hustler 603273K
Replaces:
Big Dog 601785, 601785K, 603273, 603273K
Hustler 601785, 601785K, 603273, 603273K
Warner 5218-242


Fits Models:
Big Dog R series Diablo
Hustler 930123, 930130, 930149, 930156, 930164 and 930172 FasTrak; and 927273, 931378 and 931386 TrimStar


Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 6 5/16"
Rotation Direction Counter Clockwise
