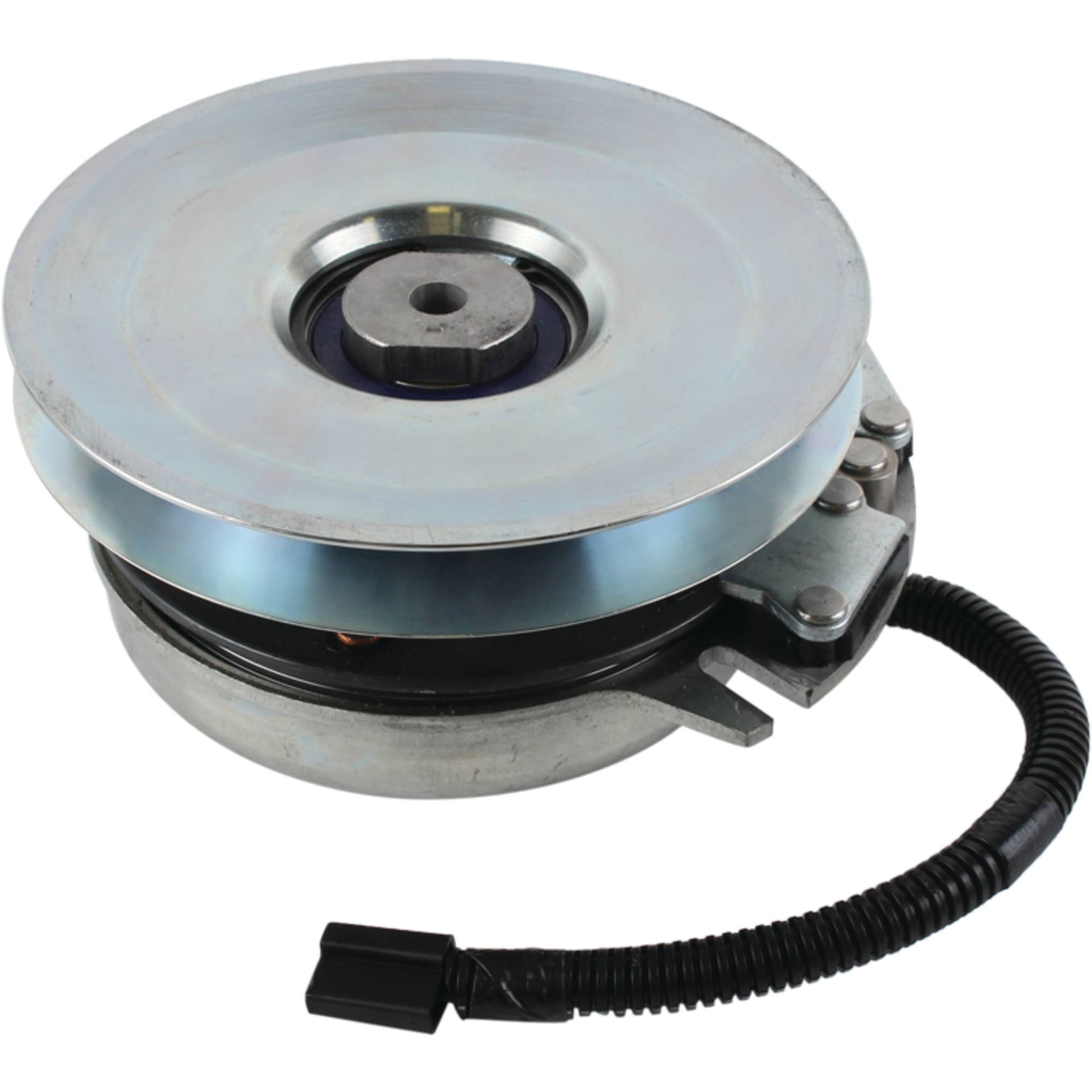

Xtreme PTO Clutch Toro 108-9512 (Stens X0368A)

Xtreme PTO Clutch For Toro 108-9512 (Stens X0368A)

Xtreme PTO Clutch
Toro 108-9512
Replaces:
Toro 108-9512
Warner 5219-56
Fits Models:
Toro TimeCutter Z480, ZX480 and ZX525, Serial No. 250000001-260999999; and XL440H, 2005-2010
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 7"
Rotation Direction Counter Clockwise
