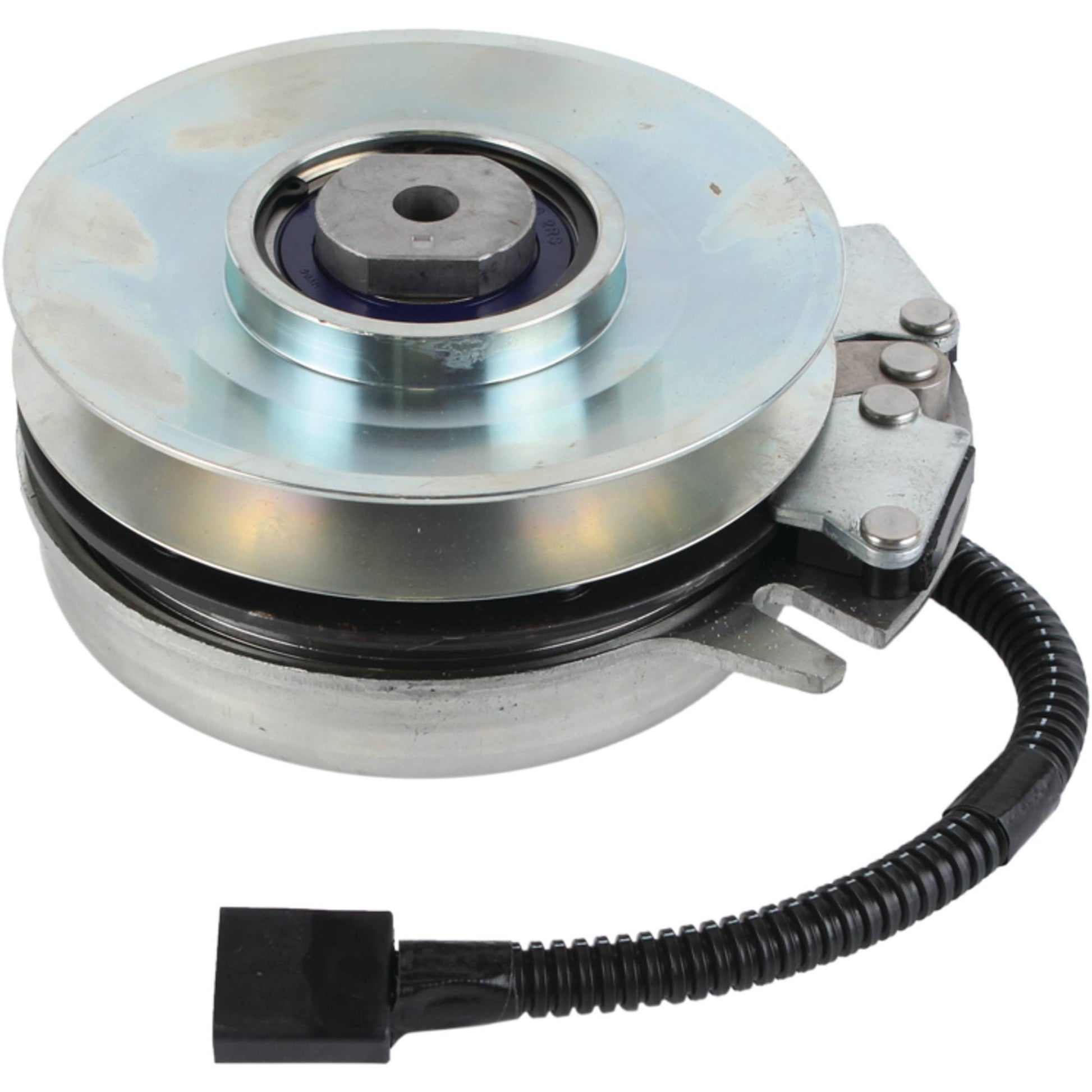

Xtreme PTO Clutch Toro 108-9510 (Stens X0369A)

Xtreme PTO Clutch For Toro 108-9510 (Stens X0369A)

Xtreme PTO Clutch
Toro 108-9510
Replaces:
Toro 108-9510
Warner 5219-58
Fits Models:
Toro RT380H, Serial No. 280000001 to 290999999, XL380, Serial No. 250000001 to 250999999, and XL380H, Serial No. 250000001 to 310999999
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1002
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 6"
Rotation Direction Counter Clockwise
