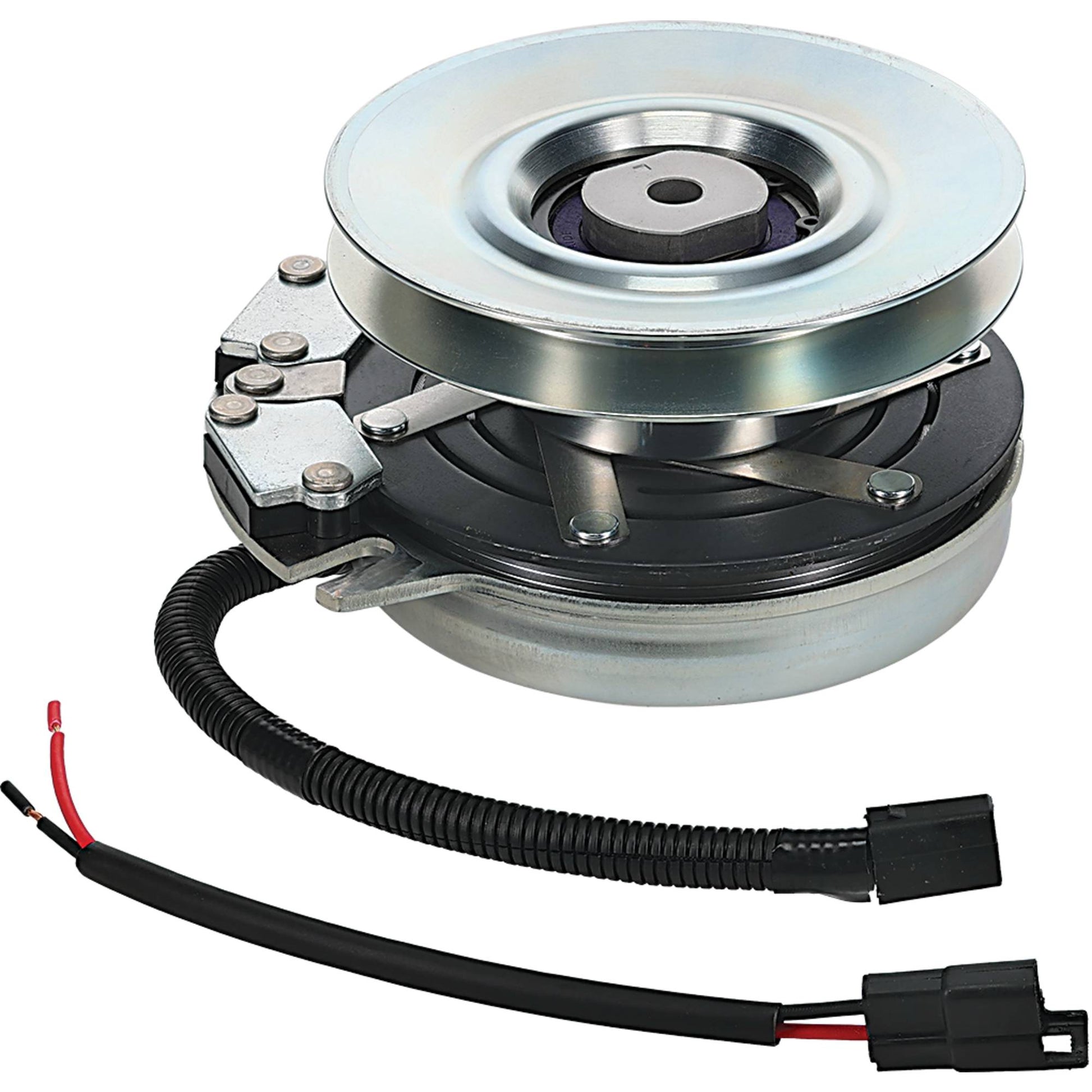

Xtreme PTO Clutch MTD 917-04552A (Stens X0390)

Xtreme PTO Clutch For MTD 917-04552A (Stens X0390)

Xtreme PTO Clutch
MTD 917-04552A
Replaces:
Bolens 717-04552, 717-04552A, 917-04552, 917-04552A
Craftsman 717-04552, 717-04552A, 917-04552, 917-04552A
Cub Cadet 717-04552, 717-04552A, 917-04552, 917-04552A
Huskee 717-04552, 717-04552A, 917-04552, 917-04552A
MTD 717-04552, 717-04552A, 917-04552, 917-04552A
Troy-Bilt 717-04552, 717-04552A, 917-04552, 917-04552A
Warner 5219-199, 5219-98
White 717-04552, 717-04552A, 917-04552, 917-04552A
Fits Models:
Cub Cadet FMZ50, LTX1042, LTX1045, LTX1046, LTX1050, RZT50, RZT54 and Z Force S series
MTD FMZ50, LTX1042, LTX1045, LTX1046, LTX1050, RZT50, RZT54 and Z Force S series
Troy-Bilt Mustang XP, 2010-2012
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 6"
Rotation Direction Counter Clockwise
