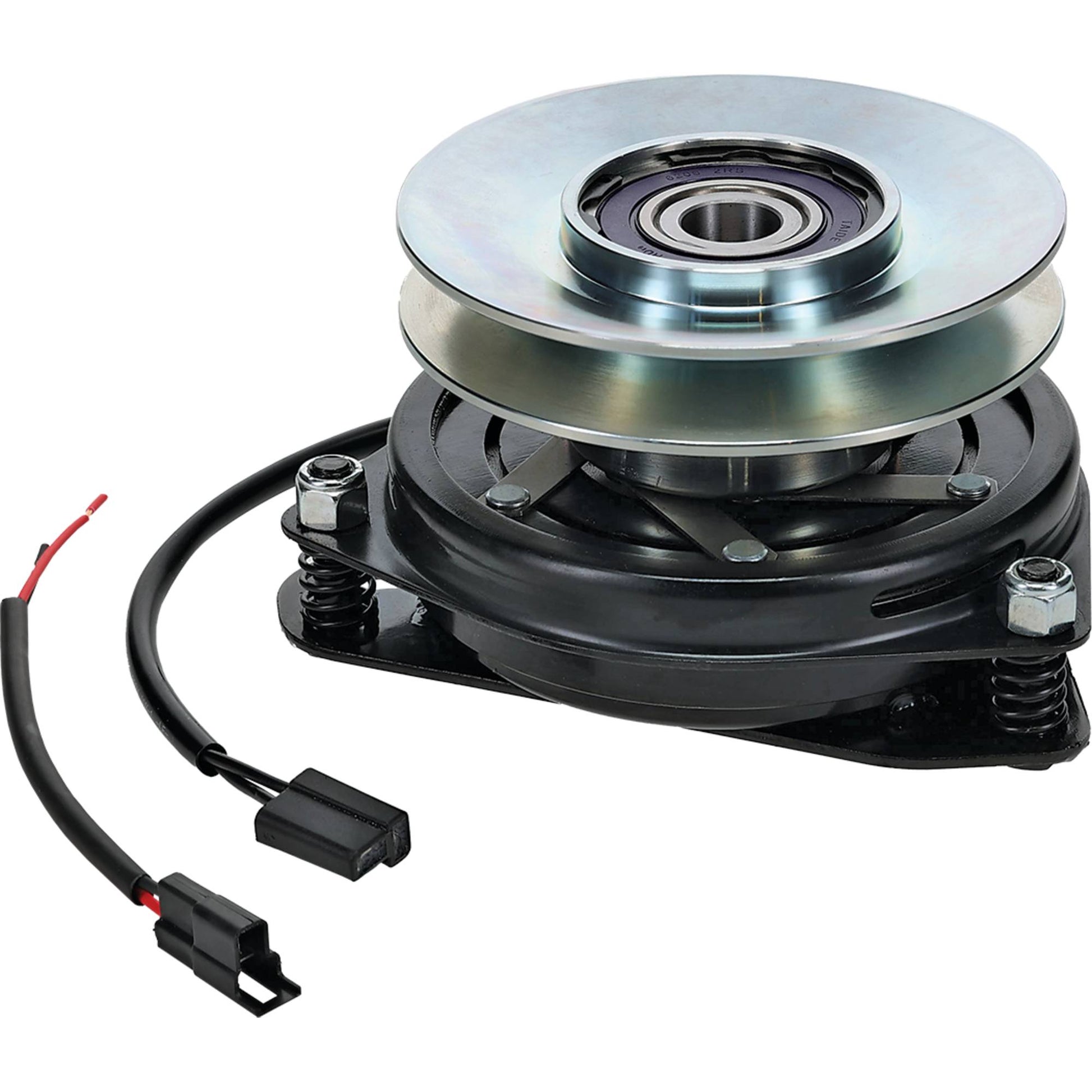

Xtreme PTO Clutch John Deere AM130328 (Stens X0410)

Xtreme PTO Clutch For John Deere AM130328 (Stens X0410)

Xtreme PTO Clutch
John Deere AM130328
Replaces:
John Deere AM103197, AM115092, AM118970, AM123285, AM130328
Ogura MAGTJD24, MA-GT-JD24
Fits Models:
John Deere 240, 245, G100, GT242, H, Serial No. 015000 and lower; H, Serial No. 015001 and higher; 1842HV; 1848GV; 1848HV; 1948HV, model prefix GX1948H, Serial No. 010001 and higher; 1948HV, model prefix M01948G; Sabre 1842GV; Sabre 1948GV; Sabre 1948GV; Sabre 2148HV, model prefix GX2148H, Serial No. 010001 and higher; Sabre 2148HV, model prefix M02148H; Sabre 2354HV, model prefix GX2354H, Serial No. 010001 and higher; Sabre 2354HV, model prefix GX2554H, Serial No. 010001 and higher; Sabre 2354HV, model prefix M02354H, Serial No. 030000 and higher; Sabre 2354HV, model prefix M02354H, Serial No. 030001 and higher; Sabre 2554HV, model prefix M02554H, Serial No. 030000 and higher; Sabre 2554HV, model prefix M02554H, Serial No. 030001 and higher
Scotts S2348, S2048, S2554 model prefix M02554S and S2554 model prefix GX2554S Serial No. 010001 and higher
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 5 5/16"
Rotation Direction Counter Clockwise
