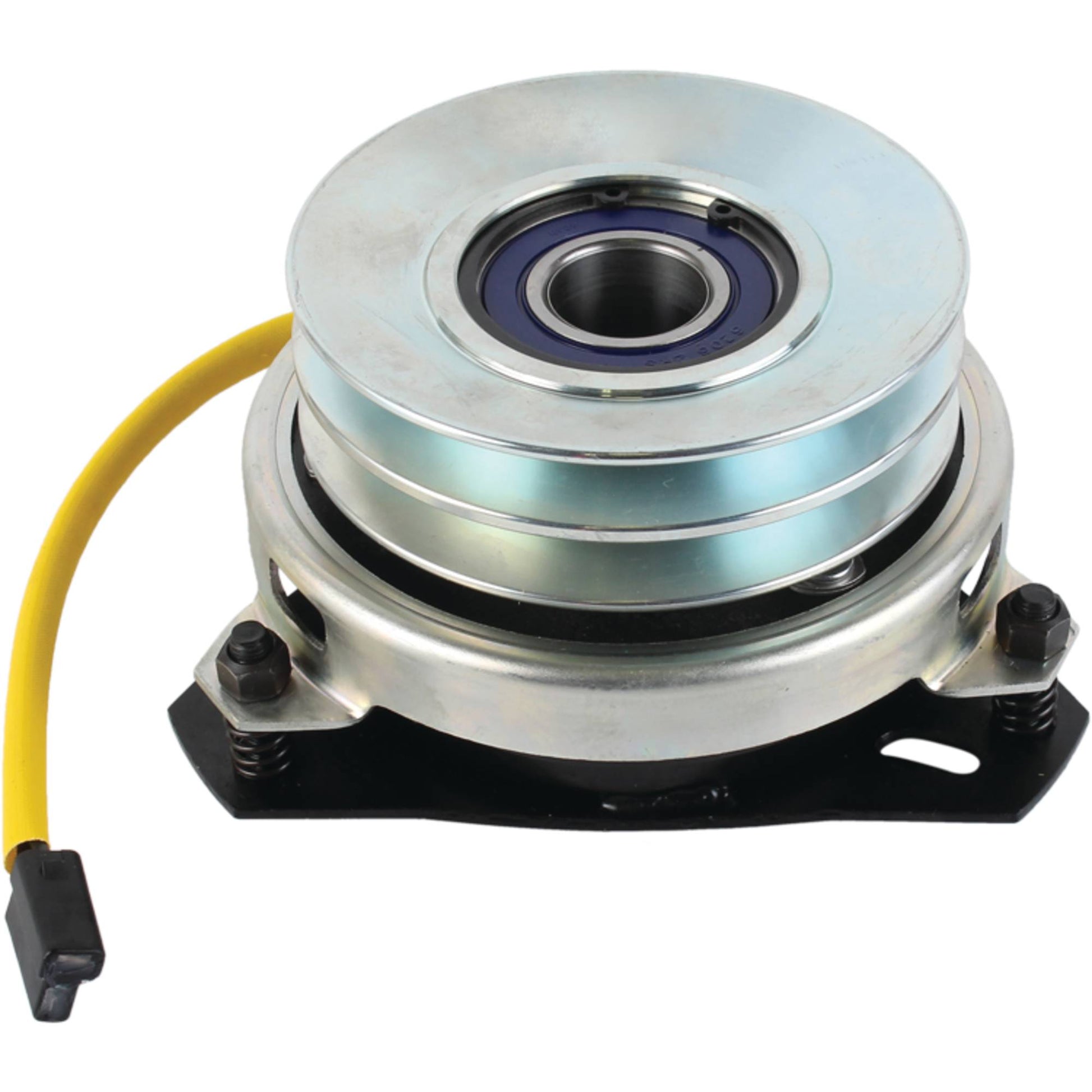

Xtreme PTO Clutch Grasshopper 604182 (Stens X0450A)

Xtreme PTO Clutch For Grasshopper 604182 (Stens X0450A)

Xtreme PTO Clutch
Grasshopper 604182
Replaces:
Ariens 03090800, 30908
Case IH C38410, C47449, WD-C38410, WD-C47449
Craftsman C38410, C47449, WD-C38410, WD-C47449
Cub Cadet C38410, C47449, WD-900-5716, WD-C38410, WD-C47449
Ford /New Holland TR100D6059, TR103D9950
Grasshopper 388766, 604182
Gravely 03090800, 30908
Ingersoll Rand C38410
Jacobsen C38410
Landoll 17531
Lesco 17531
MTD C38410, WD-900-5716, WD-C38410, WD-C47449
Toro 113997, 93-3160
Warner 5210-31, 5210-52, 5215-62
Woods 388766, 604182
Fits Models:
Ariens Grand Sierra, 931037, 931038, 931302 and 931303
Grasshopper 718D, 718K, 720K, 721, 721D and 725
Gravely GT600, 987104
Toro 74140 and Proline 724-Z, Serial No. 590001-699999
Woods Mow 'n Machines


Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width Double A
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 4 13/16"
Rotation Direction Clockwise
