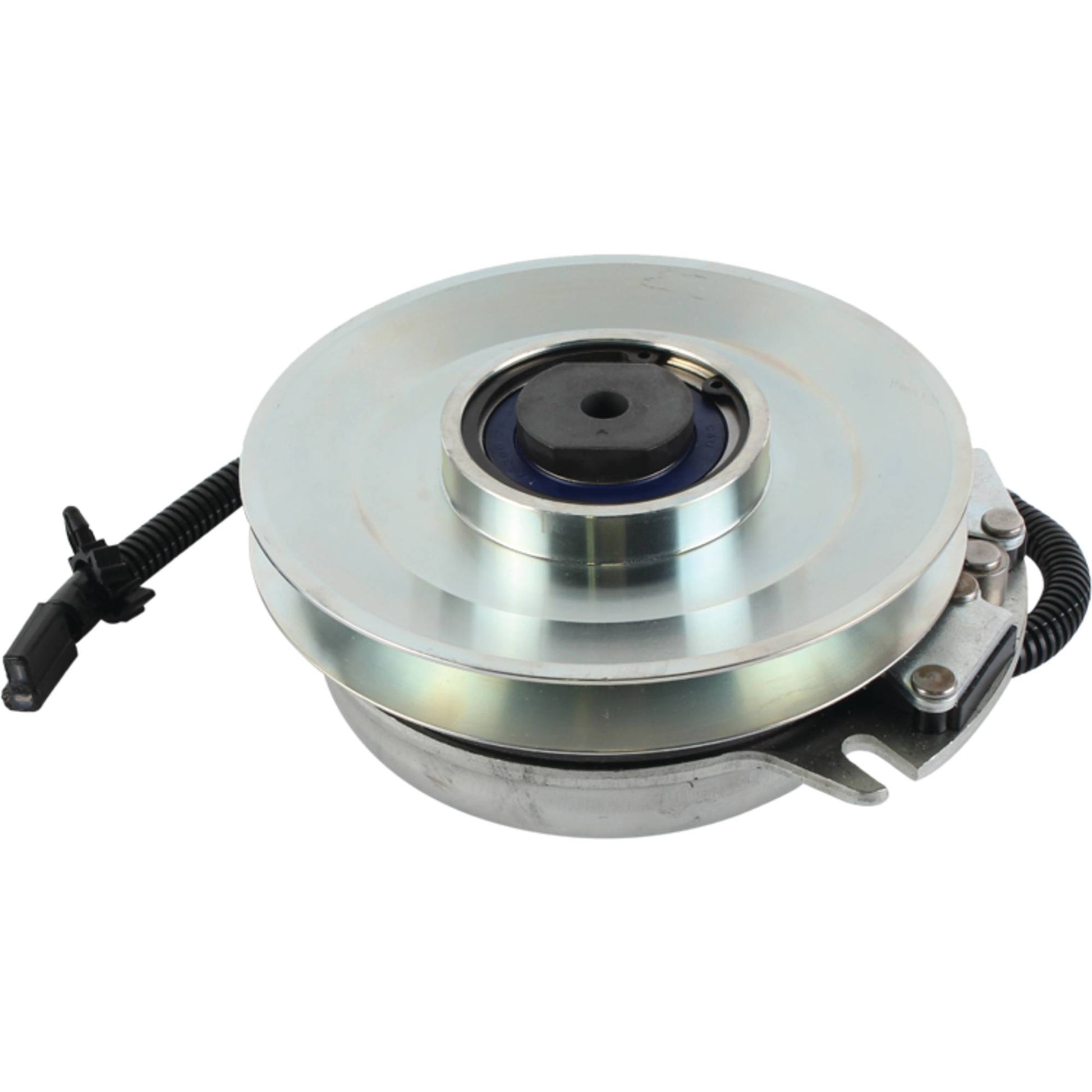

Xtreme PTO Clutch Exmark 109-9275 (Stens X0459A)

Xtreme PTO Clutch For Exmark 109-9275 (Stens X0459A)

Xtreme PTO Clutch
Exmark 109-9275
Replaces:
Dixie Chopper 500012
Exmark 109-9275
Warner 5218-107, 5218-140, 5218-210, 5218-253
Fits Models:
Dixie Chopper Run Behind, Silver Eagle LT and Silver Eagle SE series
Exmark Lazer HP 523, Serial No. 720,000 and higher


Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 7 3/16"
Rotation Direction Counter Clockwise
