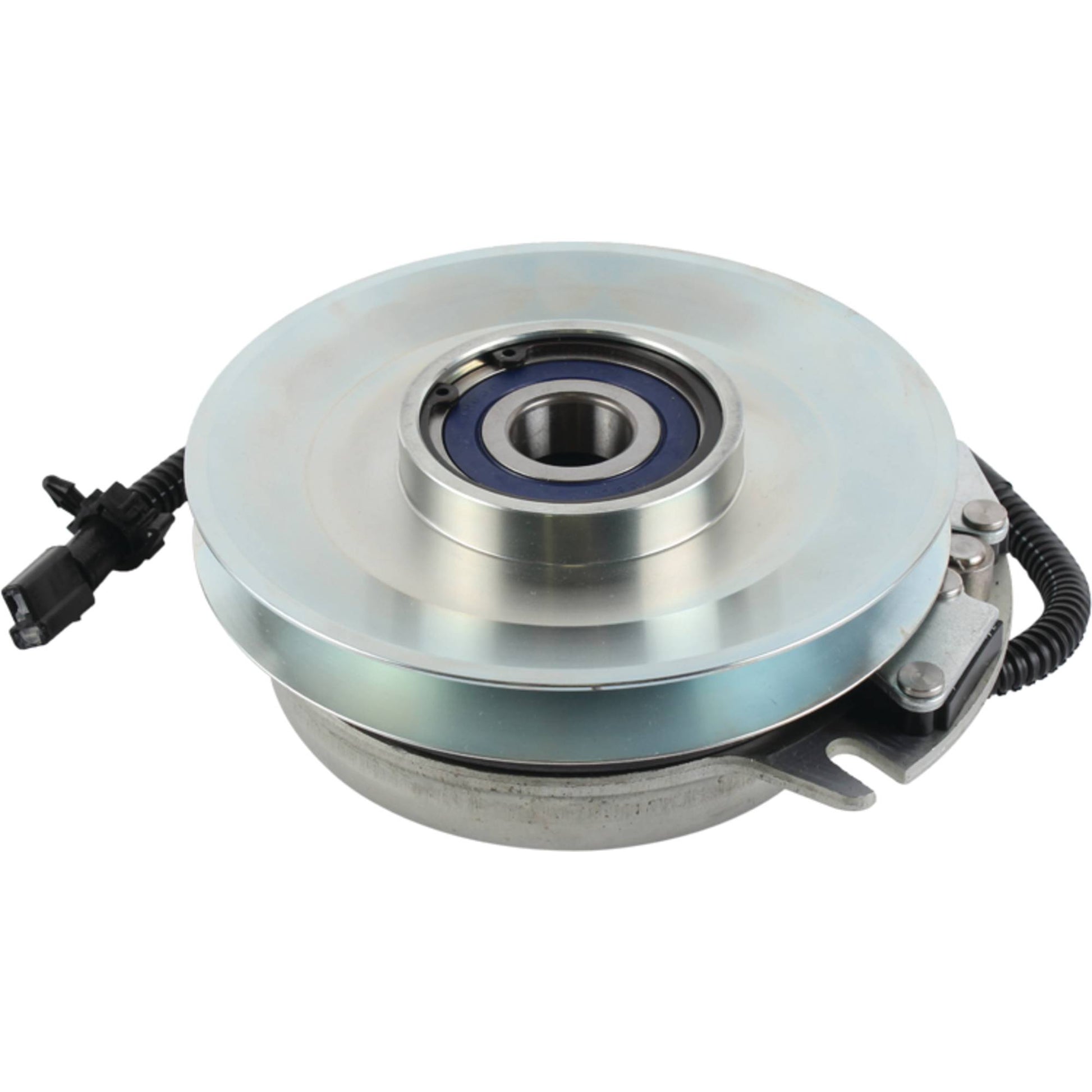

Xtreme PTO Clutch Exmark 109-7666 (Stens X0460A)

Xtreme PTO Clutch For Exmark 109-7666 (Stens X0460A)

Xtreme PTO Clutch
Exmark 109-7666
Replaces:
Exmark 103-2453, 103-3244, 103-6589, 109-7666
Toro 103-2453, 103-3244, 103-6589, 109-7666
Warner 5218-101, 5218-217
Fits Models:
Exmark Lazer Z XS, Serial No. 440,000 and higher; Lazer Z AS, Serial No. 720,000-789,999; Lazer Z, Kawasaki units, Serial No. 370,000 and higher; and Lazer Z XS, Serial No. 600,000 and higher
Toro Z Master Z550, Serial No. 280000001-280999999, Z555, Serial No. 240000001-250999999, Z558, Serial No. 270000001-270999999 and Z587L, Serial No. 240000001-240999999
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1 1/8"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 7 1/8"
Rotation Direction Clockwise
