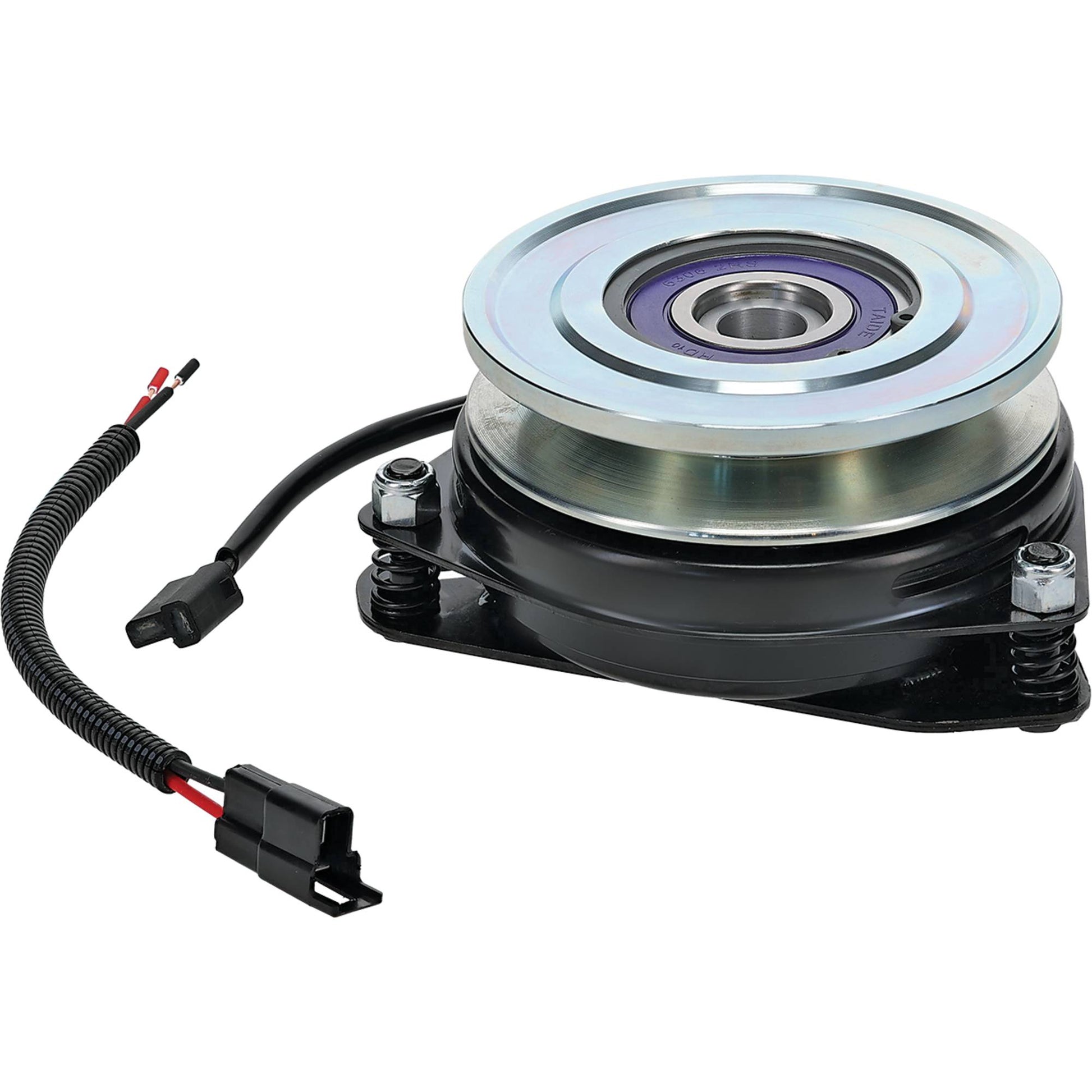

Xtreme PTO Clutch Murray 1687746YP (Stens X0486)

Xtreme PTO Clutch For Murray 1687746YP (Stens X0486)

Xtreme PTO Clutch
Murray 1687746YP
Replaces:
Briggs & Stratton 1686880SM, 1687746YP
Craftsman 1686880, 1686880SM
Murray 1686880, 1686880SM, 1687746YP
Ogura GT1BS03, GT1-BS03
Simplicity 1686880, 1686880SM, 1687746, 1687746YP, 1717664SM, 1720532, 1720532SM
Snapper 1686880, 1686880SM, 1687746, 1687746YP, 1717664, 1717664SM, 1720532
Fits Models:
Murray EZT2042, ZT1644E, ZT7000, ZTS6000 and ZTX7500
Simplicity Baron, Baron XL, Braodmoor, Conquest, Pacer, Rapid and Regent series
Snapper 150Z, 200Z, 285Z, 300Z, RD, RZT, YT and ZT series; EZT2042, LT2246, YT2452, ZT2446 and ZT2752
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side and mower side wire harnesses
Pulley Diameter 5 5/16"
Rotation Direction Counter Clockwise
