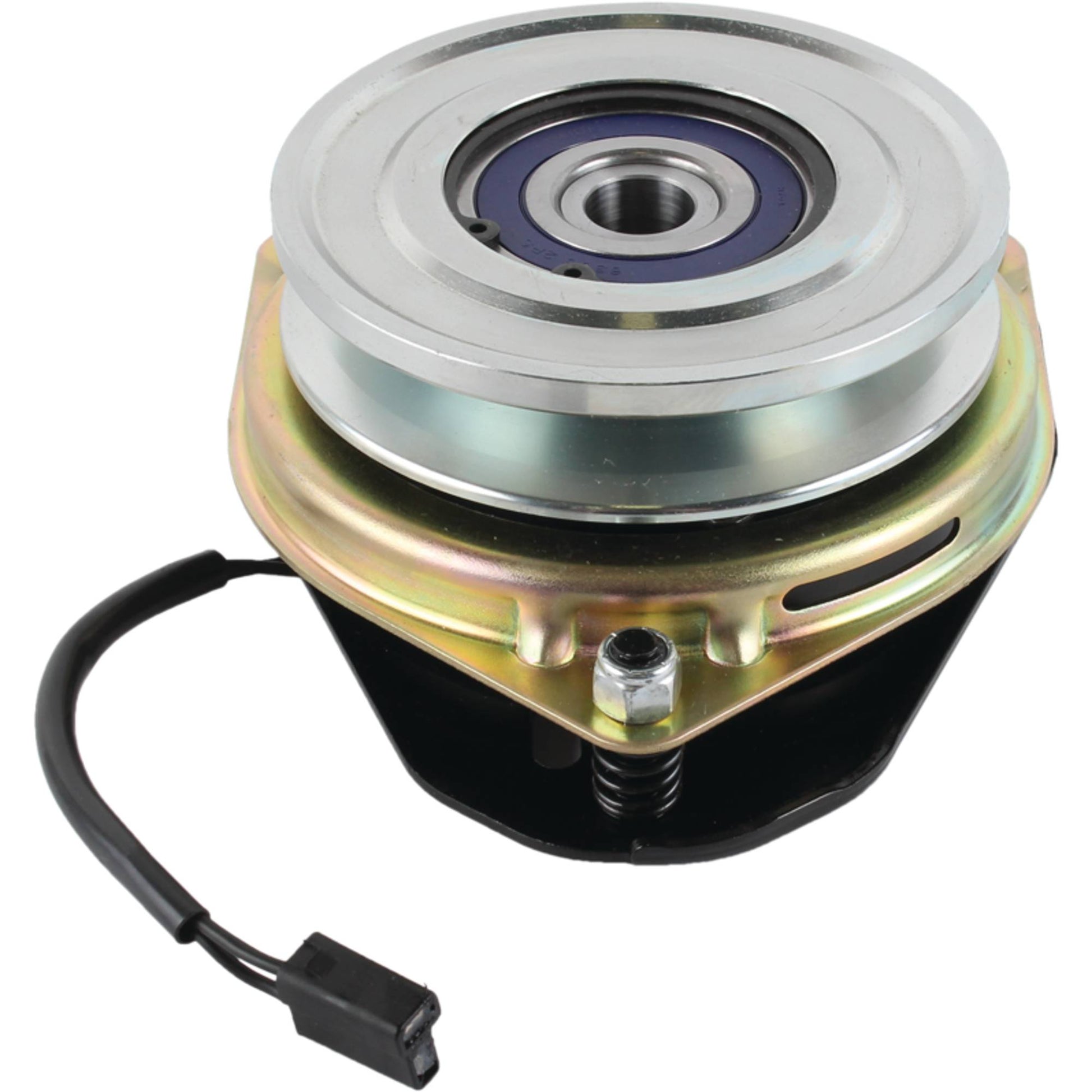

Xtreme PTO Clutch Snapper 7063304YP (Stens X0488A)

Xtreme PTO Clutch For Snapper 7063304YP (Stens X0488A)

Xtreme PTO Clutch
Snapper 7063304YP
Replaces:
Ferris 5023100, 5023100SM, 51110100
Ford /New Holland GB88384, GB-88384, LB742606
Murray 7063304, 7063304YP
Ogura MAGTJD2, MA-GT-JD2
Simplicity 5023100, 5023100SM, 51110100
Snapper 5023100, 5023100SM, 51110100, 7063304, 7063304YP
Fits Models:
Ford /New Holland YT16, 1985-1986 and YT16H, 1986-1987
Simplicity Champion ZT and ZT3000 series
Snapper 355Z, 375Z, 400Z, LT160H, LT180H, LT200H, WLT180H, WLT200H and FastCut 0 and 1 series
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 5 5/16"
Rotation Direction Counter Clockwise
