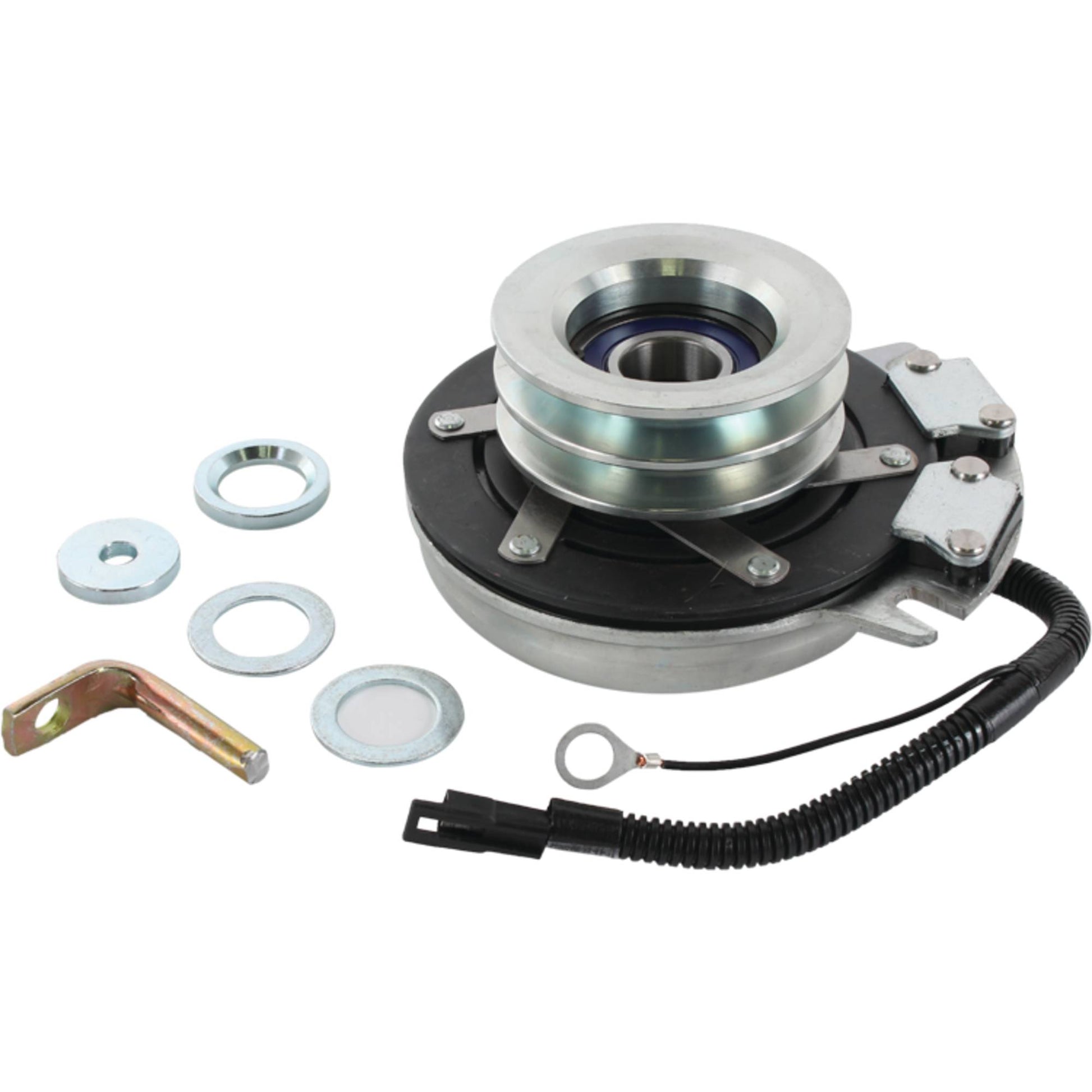

Xtreme PTO Clutch Troy-Bilt 174401P (Stens X0556)

Xtreme PTO Clutch For Troy-Bilt 174401P (Stens X0556)

Xtreme PTO Clutch
Troy-Bilt 174401P
Replaces:
Ogura MAGTBN1, MA-GT-BN1
Troy-Bilt 1744401, 1744401P, GW-1744401, GW-1744401P, GW-B1744401, MTD -1744401, MTD -1744401P
Fits Models:
Troy-Bilt 5118HR, 1800, 13060, 13062, 13074 and 13076
Specifications:
Does not fit all applications - Verify part number by referring to model Specifications:
High Temperature Bearing Upgrade
High Torque Cool Coil Upgrade
Integrated Water Tight Wire Harness
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width Double A
ID 1 1/8"
Pulley Diameter 4 1/8"
Rotation Direction Counter Clockwise
Documents
Xtreme Clutch Installation Instructions Download
