Xtreme PTO Clutch Cub Cadet 717-3467 (Stens X0577)

Xtreme PTO Clutch For Cub Cadet 717-3467 (Stens X0577)

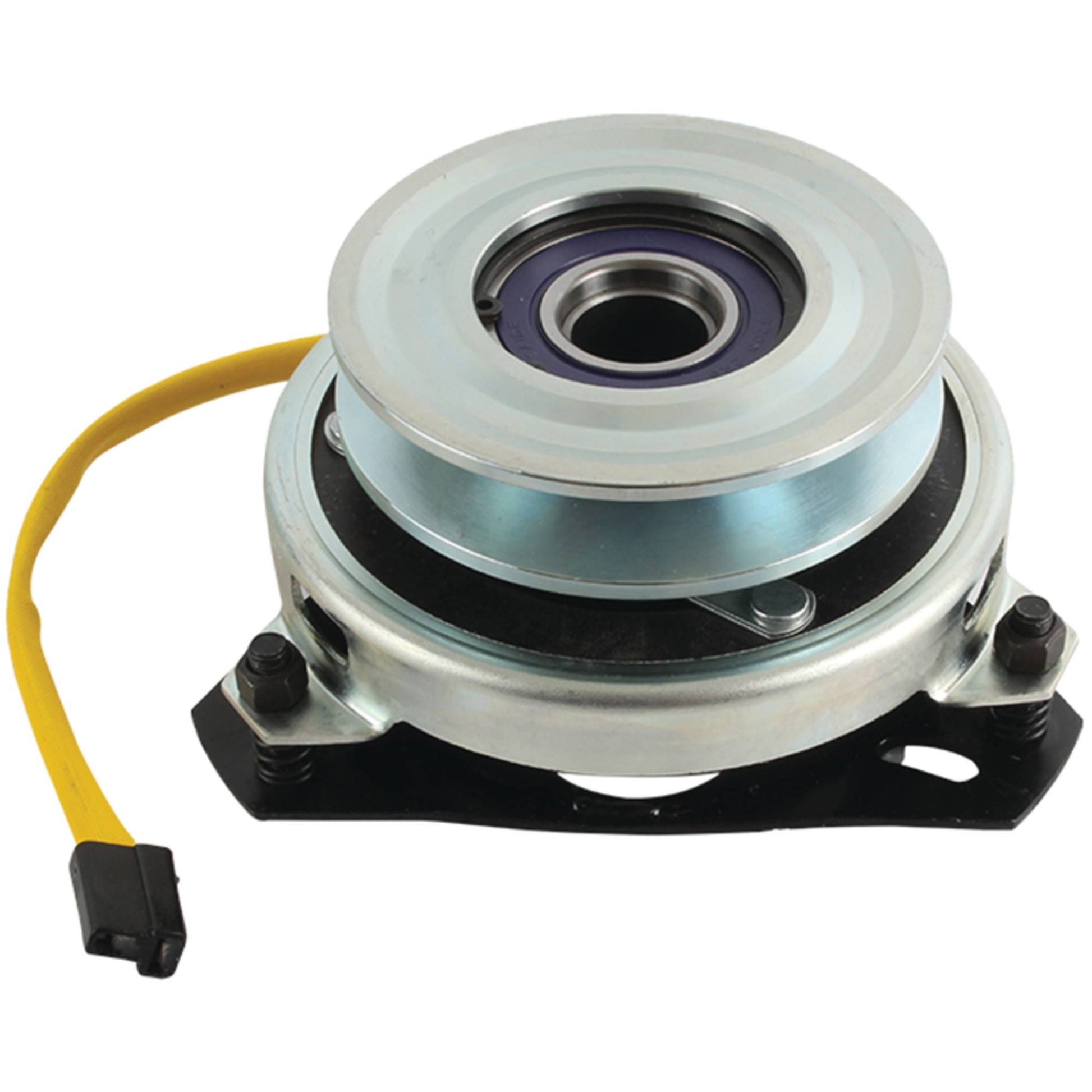

Xtreme PTO Clutch
Cub Cadet 717-3467
Replaces:
Cub Cadet 717-3035, 717-3313, 717-3467, 917-3035, 917-3313, IH-1254974-C91
MTD 717-3467
Stens 255-473
Warner 5215-46
Fits Models:
Cub Cadet 1340, 140-631-100, 141-631-100, 1512, 882, 782-D, 144-882-100, 145-882-100, 146-882-100, 2050606U, 147-882-100, 144-882-399, 1572, Serial No. 756,300-799,999, 148-710-100, 147-710-100, 1772, Serial No. 756,300-799,999, 149-711-100, 1782, Serial No. 800,000-821,059, 140-712-100, 141-712-100, 2182, Serial No. 800,000-821,059, 140-741-100, 141-741-100, 364, 53AA1A5L100, Z42, 53AC305G100 and 53BA1B2G100
MTD Z16, Z165 and ZT1850


Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width 1/2" or 5/8"
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 4 1/2"
Rotation Direction Counter Clockwise
