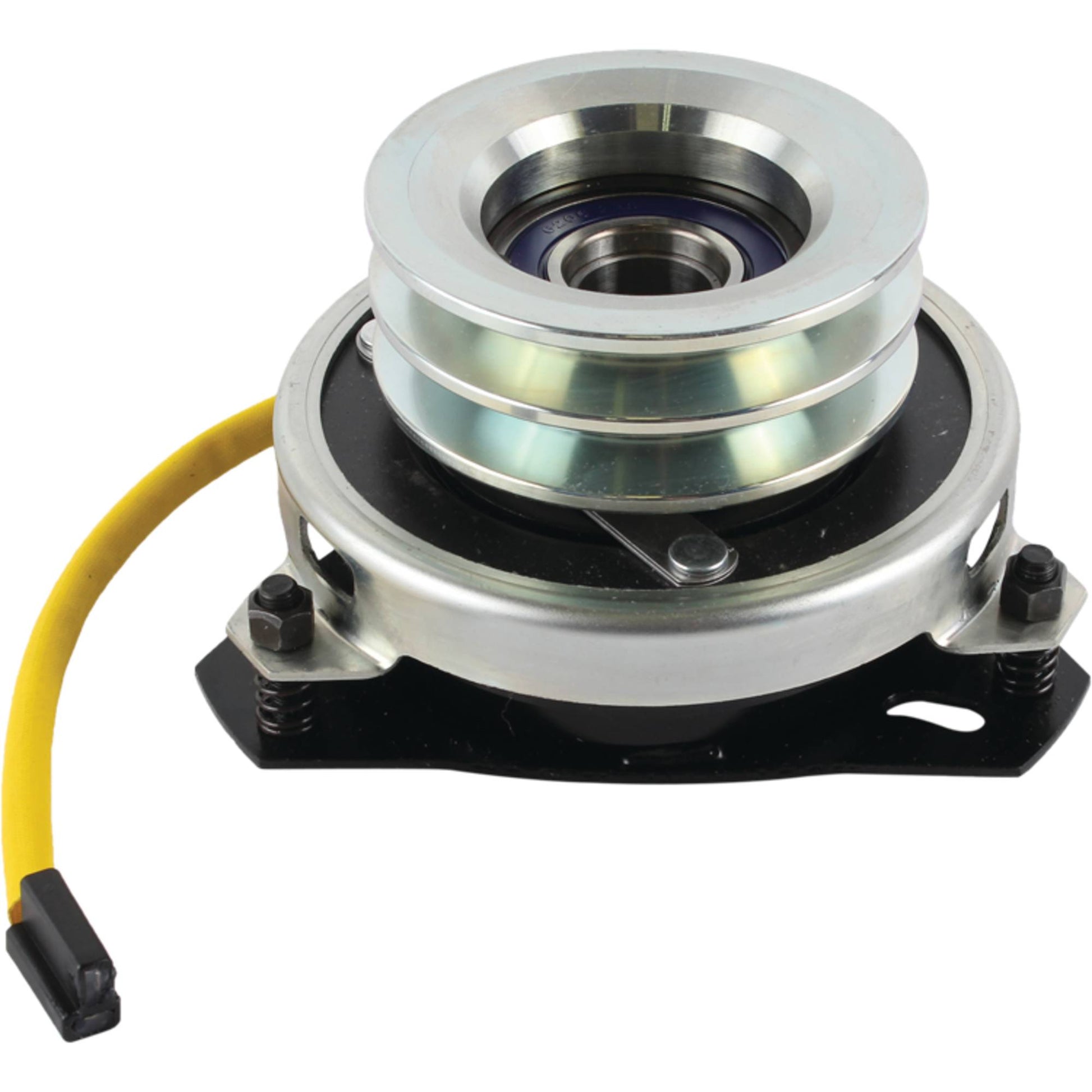

Xtreme PTO Clutch Simplicity 1714637SM (Stens X0587A)

Xtreme PTO Clutch For Simplicity 1714637SM (Stens X0587A)

Xtreme PTO Clutch
Simplicity 1714637SM
Replaces:
Agco 1714637, 1714637SM
Cub Cadet 1772076, GW-1772076
MTD 1772076, GW-1772076
Simplicity 1714637, 1714637SM
Stens 255-440, 255-769
Troy-Bilt 1772076, GW-1772076
Warner 5215-101, 5215-83, 5215-95
Fits Models:
Agco 1918H, 1692522 and 1692523
Simplicity 1692520 and 1692525
Troy-Bilt 13101 GTX


Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
For mower side wiring harness purchase XMC1003
High performance bearings with high temperature grease
Replaceable Pulley Bearing
Stainless steel rivets and bands
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Belt Width Double A
ID 1"
Includes Clutch side integrated, water tight and impact resistant wire harness
Pulley Diameter 4 1/8"
Rotation Direction Counter Clockwise
