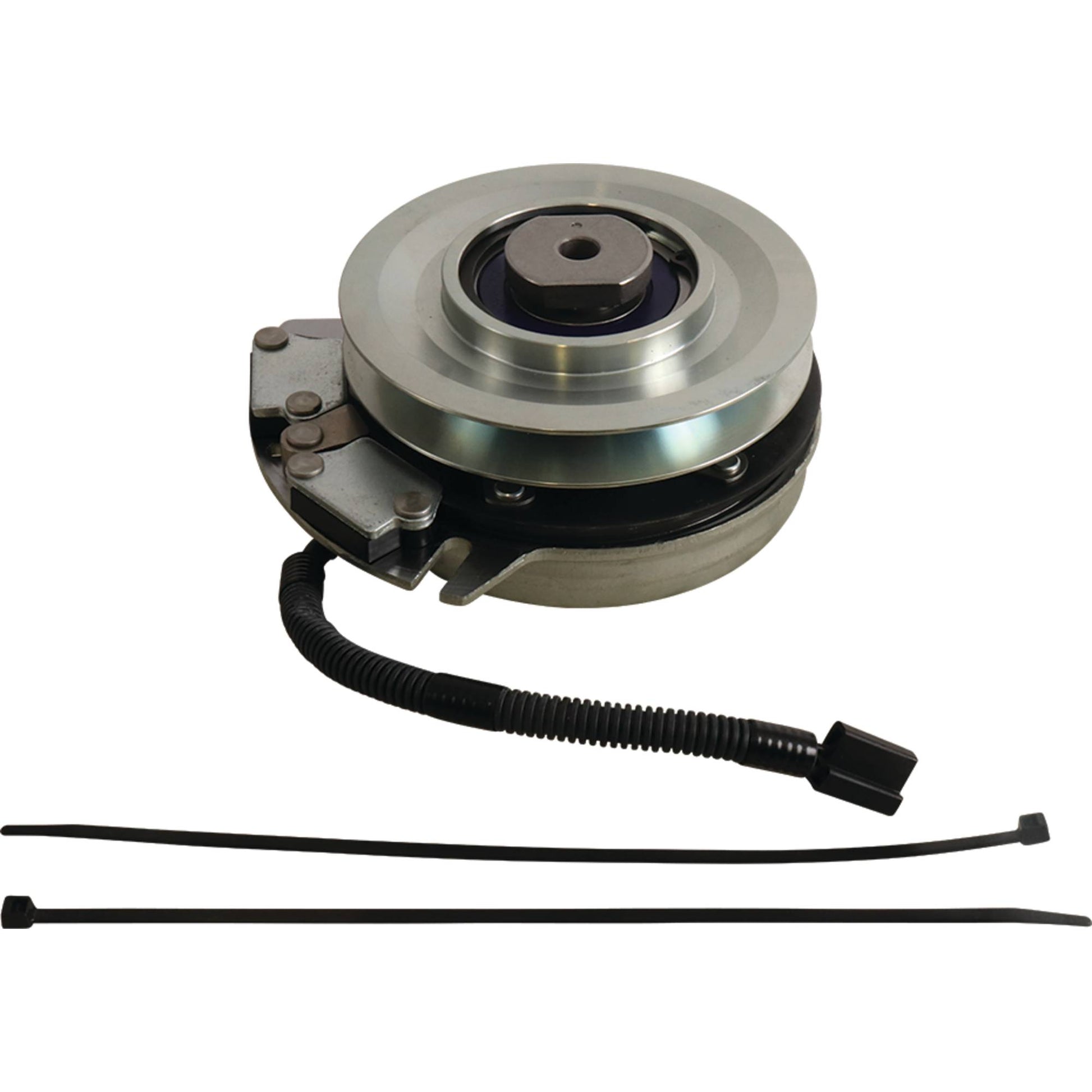

Xtreme PTO Clutch Hustler 605827K (Stens X0921A)

Xtreme PTO Clutch For Hustler 605827K (Stens X0921A)

Xtreme PTO Clutch
Hustler 605827K
Replaces:
Big Dog 605827K
Hustler 605827K
Warner 5219-194


Fits Models:
Big Dog Kohler Engine KT725, KT735, KT610, Alpha 936575 52" Serial No. ALFS052KAWFR691VA, 939124 52" Serial No.ALFL052KAWFR691VA, 939124EX 52" Serial No. ALFL052KAWFR691VE, 939132 36" Serial No. ALFL036KAWFR541VA, 939140 42" Serial No. ALFL042KAWFR600VA, 939140EX 42" Serial No. ALFL042KAWFR651VE, Alpha PRIOR TO Serial Number 17121940
Hustler 934893, 933937, 934414, 934505US, Serial No. HTRTRS042KOHKT725U; 934513US, Serial No. HTRTRS052KOHKT735U; 934521US; 934786, Serial No. HTRTRS042KOHKT725M; 934794, Serial No. HTRTRS052KOHKT735M; 934802, Serial No. HTRTLS052KOHKT735M; 935734, Serial No. HTRTRS036KOHKT610A; 935742, Serial No. HTRTRS042KOHKT725A; 935759, Serial No. HTRTRS052KOHKT735A; 935767US, Serial No. HTRTRS036KOHKT610U; 935817, Serial No. HTRTRS052KOHKT735M; 936492, Serial No. HTRTLS052KAWFR691VA; 936500, Serial No. HTRTLS052KAWFR691VM; 937748, Serial No. TRTRS042KAWFR651VA; 937755, Serial No. HTRTRS052KOHKT735A; 937763, Serial No. TRTRS052KAWFR691VA; 937771, Serial No. HTRTLS052KAWFR691VA; 937813, Serial No. TRS052BASPROM44U7M; 937847, Serial No. TRTRS042KAWFR651VM; 937854, Serial No. TRTRS052KAWFR691VM; 937862, Serial No. HTRTLS052KAWFR691VM; 938159, Serial No. HTRTRS036KOHKT610A; 938167, Serial No. HTRTRS042KOHKT725A; 938563, Serial No. HTRTRL036KOHKT610A; 938571, Serial No. HTRTRL042KOHKT725A; 938589, Serial No. TRTRL042KAWFR600VA; 938597, Serial No. HTRTRL052KOHKT735A; 938605, Serial No. TRTRL052KAWFR691VA; 938613, Serial No. HTRTLL052KAWFR691VA; 938977, Serial No. HTRTLL042KAWFR651VA; 939165, Serial No. TRL052BASPROM44U7M; 939215, Serial No. TRTRL042KAWFR600VM; 939223, Serial No. TRTRL052KAWFR691VM; and 939389, Serial No. TRTRL036KAWFR541VA
Specifications:
Cool Coil Technology
Does not fit all applications - Verify part number by referring to model Specifications:
High Temperature Bearing Upgrade
Replaceable Pulley Bearing
Super Smooth "Xtreme Precision" Machined Pulley
To prevent premature clutch failure, follow the instruction sheet included with the clutch
Upgraded to 3 Layer "Xtreme TOUGH" Integrated, Water Tight Wire Harness
Belt Width 1/2" or 5/8"
ID 1 1/8"
Pulley Diameter 5 3/4"
Rotation Direction Counter Clockwise
Documents
Xtreme Clutch Installation Instructions Download
